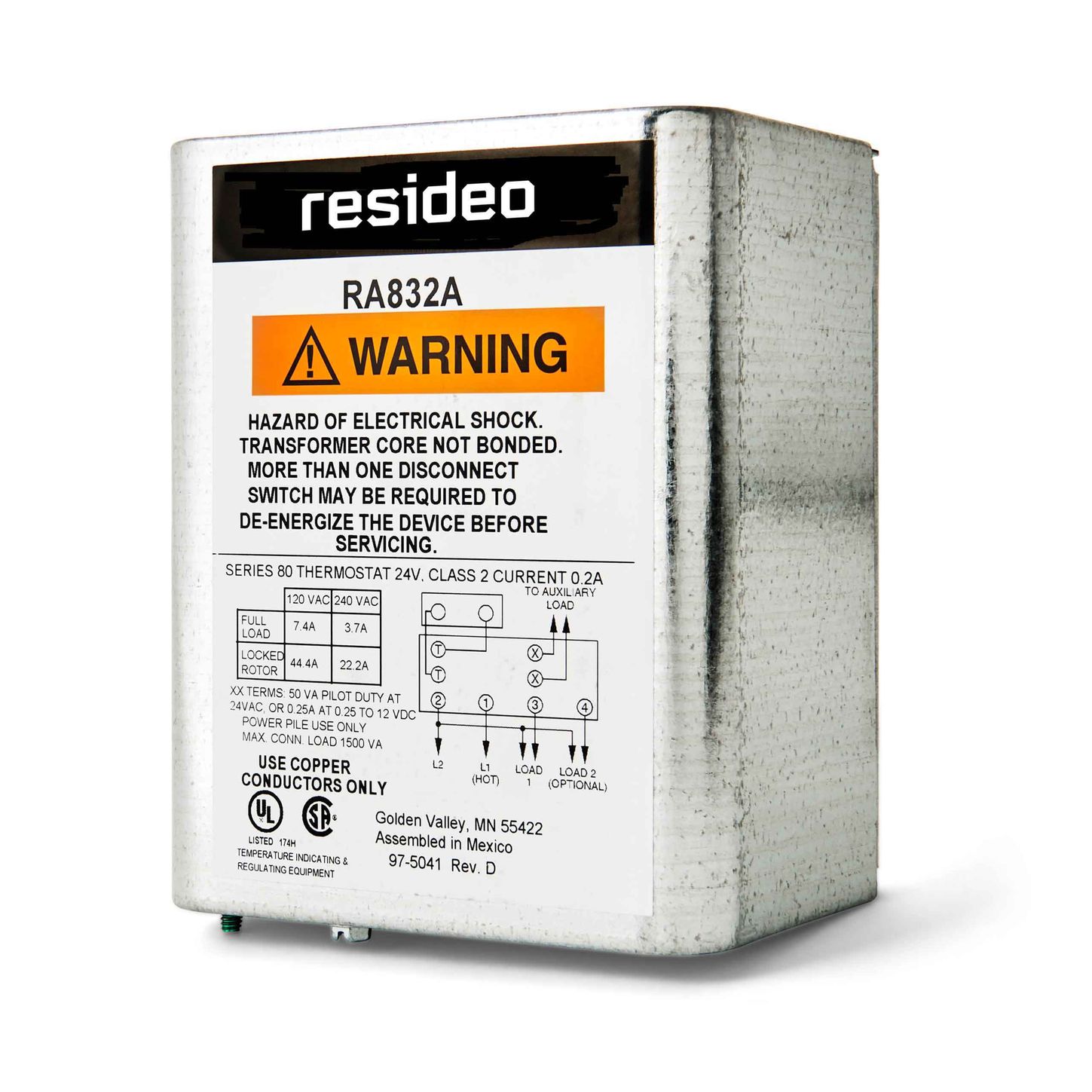

Resideo RA832A1082

Switching Relay W. Internal Transformer

Provides intermediate switching of a line voltage device from a low voltage controller.

Features

• Integral transformer provides low voltage power for control circuit
• The RA832A is a tpst relay. One relay pole is designed for low voltage or millivoltage (Powerpile) auxiliary load. Two other relay poles are for line voltage loads

Product Specifications

• Description: Switching Relay with internal transformer, for switching two line voltage loads having a common power source
• Application Provide intermediate switching of a line voltage device form a low voltage controller
• Electrical Connections (main) 2-Wire Switching Action DPST. one pole line voltage, the other low voltage or millivoltage
• Coil Ratings Current 0.4A
• Coil Ratings Voltage 24 Vac
• Temperature Range (F) 115 F maximum ambient for 60 Hz. 105 F Max. Ambient for 50 Hz. Temperature Range (C) 46 C maximum ambient for 60 Hz., 41 C maximum ambient for 50 Hz.
• Dimensions (in.) 5 ¼ in. high x 4 ¼ in. wide x 2 5/16 in. deep
• Dimensions (mm) 133 mm high x 108 mm wide x 59 mm deep
• Electrical Ratings - Primary Voltage 240V. 50/60 Hz
• Approvals, Underwriters Laboratories Inc Listed: File No. E4436, Guide No. XAPX
• Approvals, Canadian Standards Association Certified: File No. LR1620
• Includes Integral transformer, enclosure
• Tradeline Value: Tradeline
• Electrical Ratings (Maximum Input) 5.0 W
• Electrical Ratings (Primary Voltage) 240V, 50/60 Hz
• Contacts Electrical Rating Main Contacts 120 Vac 7.4A AFL. 44.4A ALR. 10A Resistive
• Contacts Electrical Rating Main Contacts 240 Vac 3.7A ALF. 22.2A ALR. 6.0A Resistive
• Contacts Electrical Rating Secondary Contacts Pilot Duty Rat 50 VA @ 24V
• Contacts Electrical Rating Secondary Contacts Dc Rating 1A @ 12 Vdc
• Contacts Electrical Rating Secondary Contacts Millvolt Ratin 300 mA min. @ 750 mV
• Contacts Electrical Rating Contacts Max. Connected Load 2000 VA (120 Vac to 240 Vac) Electrical Rating: Maximum Input 5.0W
