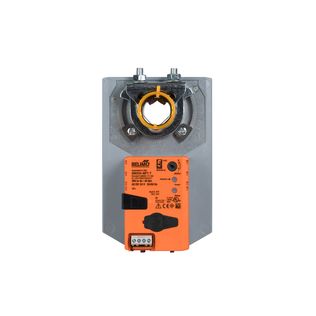

Belimo GMX24-MFT

Configurable Damper Actuator, 360 in-lb [40 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Features:

• Product Type: Damper Actuator
• Actuator Type: Non-Spring Return
• Object name: GMX24-MFT
• Application Type: Air
• Fail-Safe: Non-Spring
• Torque: minimum 360 in·lb, minimum 40 N·m
• Control Type: Modulating
• Control Input: MFT
• Input Impedance: 100 k omega for 2 to 10 VDC (0.1 mA), 500 omega for 4 to 20 mA, 1500 omega for PWM, on/off and floating point
• Position Feedback: 2-10 VDC Feedback
• Running Time (Motor): 75-300 seconds constant, independent of load (150)
• Power Supply: 24 VAC ±20%, 50/60 Hz, 24 VDC ±10%
• Power Consumption: Running: 4.5 W, Holding: 1.5 W
• Transformer Sizing: 7 VA (class 2 power source)
• Electrical Connection: 3 ft, 18 GA plenum rated cable with ½” conduit connector, 10 ft (3m) and 15 ft (5m) avail.
• Overload Protection: Electronic throughout 0º to 95º rotation
• Shaft Diameter: Standard: ½” to 1.05” round, centers on ½” and ¾” with insert, 1.05 without insert
• Angle of Rotation: max. 95º, adjustable with mechanical stop
• Direction of Rotation (Motor): Reversible with switch
• Position Indication: Reflective visual indicator (snap on)
• Manual Override: External push button
• Humidity: 5 to 95% RH non condensing (EN 60730-1)
• Ambient Temperature: -22 to 122 ºF, -30 to 50 ºC
• Storage Temperature: -40 to 176 ºF, -40 to 80 ºC
• Noise Level: max. 45 dB (A)
• Housing: NEMA 2, IP54, UL enclosure type 2
• Agency Listing: cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EEC and 2006/95/EC
• Servicing: Maintenance free
• Quality Standards: ISO 9001
• Weight : 3.40 lb, 1.55 kg

**Image may not be exact representation of item.**
