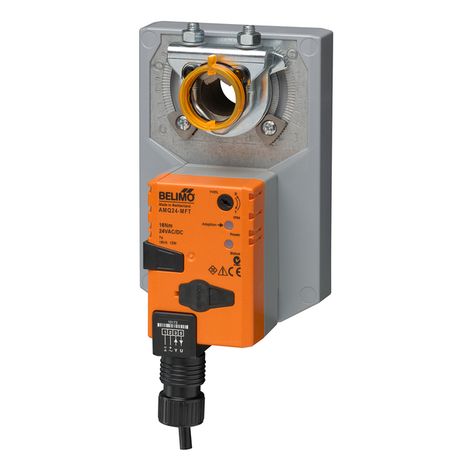

Belimo AMCB24-MFT

Damper Actuator, 180 in-lb [20 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Proportional Control, Non-Spring Return, Direct Coupled, 24V, Multi-Function Technology

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.

The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp, ½” self-centered default. A crankarm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

The default parameters for 2 to 10 VDC applications of the …MFT actuator are assigned during manufacturing. If necessary, custom versions of the actuators can be ordered. The parameters can be changed by two means: pre-set and custom configurations from Belimo or on-site configurations using the Belimo PC-Tool software.

The AMCX24-MFT actuators use a Brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.

Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 95
• Control Type: MFT/Programmable
• Degree of Protection: IP54, NEMA 2, UL Enclosure Type 2
• Electrical Connection: Cable
• Manual Override: External push button
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 4 W
• Running Time (Motor): 35 s / 90°
• Safety Function: NO
• Torque: 180 in-lb [20 Nm]
• Voltage AC/DC: AC/DC 24 V
