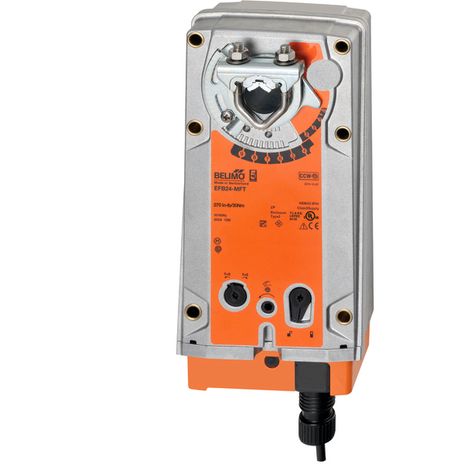

Belimo EFB24-MFT

Name: Belimo EFB24-MFT
Brand: Belimo
SKU: CS3154760
Price: 991.90 USD
Availability: InStock

SKU: CS3154760MPN: EFB24-MFT

Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2...10 V, MFT/programmable

$991.90

Unit

1 in stock

Quantity

remove

add

Documents

Belimo EFB24-MFT Data Sheet
Belimo EFB120, EFB120-S, EFB120-S N4, EFB24, EFB24 N4, EFB24-MFT, EFB24-MFT-S, EFB24-S, EFB24-SR, EFB24-SR N4, EFB24-SR-S, EFCX120-S N4, EFCX24-S N4, EFX120, EFX120-S Installation Instructions

Product Details

Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, 2...10 V, MFT/programmable

Attributes

Control	MFT/programmable
Fail-Safe	Spring Return
Torque	270 in-lb
Nominal Voltage	AC/DC 24 V
Transformer Sizing	16 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, -10% / +20%
Power Consumption In Operation	9.5 W
Power Consumption In Rest Position	4.5 W
Electrical Connection	18 GA appliance cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Operating Range	2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, PWM, on/off, floating point)
Operating Range Y Variable	Start point 0.5…30 V End point 2.5…32 V
Input Impedance	100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for PWM, On/Off and Floating point
Position Feedback	2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation	Max. 95°, adjustable with mechanical end stop, 35…95°
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanical
Running Time (Motor)	default 150 s, variable 60…150 s
Running Time Fail-Safe	<20 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	Die cast aluminium and plastic casing
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	45 dB(A)
Torque Motor	270 in-lb [30 Nm]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	71 dB(A)
Angle Of Rotation Adaptation	off (default)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC
Shaft Diameter	½…1.05” round, centers on ¾” with insert, 1.05” without insert
Override Control	MIN (minimum position) = 0% MID (intermediate position) = 50% MAX (maximum position) = 100%
Fail-Safe Function	Spring return
Control Type Web	MFT/Programmable
Fail-Safe	YES
