HVAC/RActuatorsBelimo

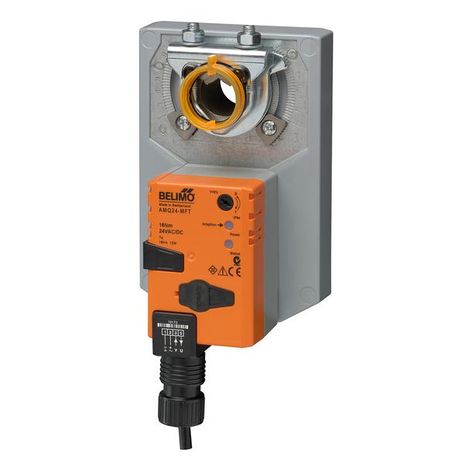

Belimo AMQB24-MFT

SKU: CS2194259MPN: AMQB24-MFT

Damper Actuator, 140 in-lb [16 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Belimo AMQB24-MFT, AMQX24-1, AMQX24-MFT
$519.13
Unit
Available on backorder
remove
add

Documents

Product Details

Basic Non Fail-Safe multifunction technology actuator for controlling dampers in typical commercial HVAC applications.

Product Features

  • Voltage AC/DC: AC/DC 24 V
  • Power Consumption (Running): 15 W
  • Power Consumption (Holding): 1.5 W
  • Power Consumption For Wire Sizing: 26 VA
  • Torque: 140 in-lb [16 Nm]
  • Control Type: MFT/Programmable
  • Direction Of Motion Motor: selectable with switch 0/1
  • Manual Override: External push button
  • Angle of Rotation: 95
  • Running Time (Motor): 7 s / 90°
  • Running Time range (Motor): 10, 15 or 20 s
  • Protection category: IP54
  • Degree Of Protection NEMA: NEMA 2
  • Enclosure Type: UL Enclosure Type 2
  • Ambient Temperature: -22...122°F [-30...50°C]

Attributes

Control MFT/programmable
Fail-Safe Non-Spring Return
Torque 140 in-lb
Nominal Voltage AC/DC 24 V
Transformer Sizing 26 VA (class 2 power source)
Enclosure UL Enclosure Type 2
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation 15 W
Power Consumption In Rest Position 1.5 W
Electrical Connection 18 GA plenum cable, 3 ft [1 m], with ½” conduit connector, degree of protection NEMA 2 / IP54
Overload Protection electronic throughout 0…95° rotation
Operating Range 2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, on/off)
Operating Range Y Variable Start point 0.5…30 V End point 2.5…32 V
Input Impedance 100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for On/Off
Position Feedback 2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation Max. 95°, adjustable with mechanical stop
Direction Of Motion Motor selectable with switch 0/1
Position Indication Mechanically, 30…65 mm stroke
Running Time (Motor) default 7 s, variable 10, 15 or 20 s, constant, independent of load
Ambient Humidity max. 95% r.H., non-condensing
Ambient Temperature -22…122°F [-30…50°C]
Storage Temperature -40…176°F [-40…80°C]
Degree Of Protection Iec/En IP54
Degree Of Protection Nema/Ul NEMA 2
Connection cable
Servicing maintenance-free
Housing Material UL94-5VA
Nominal Voltage Dc 24 V
Nominal Voltage Ac 24 V
Noise Level, Motor 52 dB(A)
Torque Motor 140 in-lb [16 Nm]
Quality Standard ISO 9001
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter ½…1.05” round, centers on ½” and ¾” with insert, 1.05” without insert
Fail-Safe Function Non fail-safe
Control Type Web MFT/Programmable
Fail-Safe NO

Specifications

SKUCS2194259
MPNAMQB24-MFT
