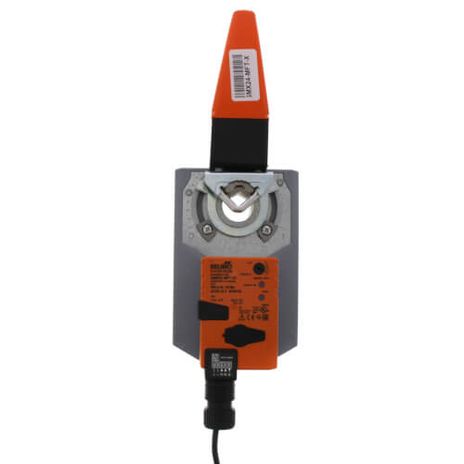

Belimo GMX24-MFT-X1

Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Features:

• Power Supply: 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
• Power Consumption Running: 4.5 W
• Power Consumption Holding: 1.5 W
• Transformer Sizing: 7 VA (class 2 power source)
• Shaft Diameter: Standard ½” to 1.05” round, centers on ½” and ¾” with insert, 1.05” without insert
• Electrical Connection 3 ft., 18 GA plenum rated cable with ½” conduit connector (10 ft [3m] and 15 ft [5m] avail.)
• Overload Protection: electronic throughout 0° to 95° rotation
• Operating Range Y: 2 to 10 VDC, 4 to 20 mA (default), variable (VDC, floating point, on/off)
• Feedback Output U: 2 to 10 VDC, 0.5 mA max, VDC variable
• Angle of Rotation: max. 95°, adjustable with mechanical stop
• Torque: 360 in-lbs [40 Nm] minimum
• Direction of Rotation (Motor) reversible with built-in switch
• Position Indication: reflective visual indicator (snap on)
• Manual Override: external push button
• Running Time (Motor): 150 seconds (default), variable (90 to 150 seconds)
• Humidity: 5 to 95% RH non-condensing
• Ambient Temperature Range: -22°F to +122°F [-30°C to +50°C]
• Storage Temperature Range: -40°F to +176°F [-40°C TO +80°C]
• Housing: NEMA 2, IP54
• Agency Listings: cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC
• Noise Level (Motor): \<45 dB (A)
• Servicing: maintenance free
• Quality Standard: ISO 9001
• Weight: 3.4 lbs [1.55 kg]
