Eaton E71-FFDP-M8

Name: Eaton E71-FFDP-M8
Brand: Eaton
SKU: CS4873888
Availability: OutOfStock

SKU: CS4873888MPN: E71-FFDP-M8UPC/EAN: 786685262246

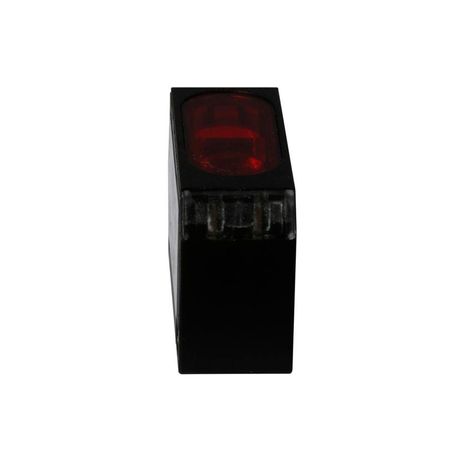

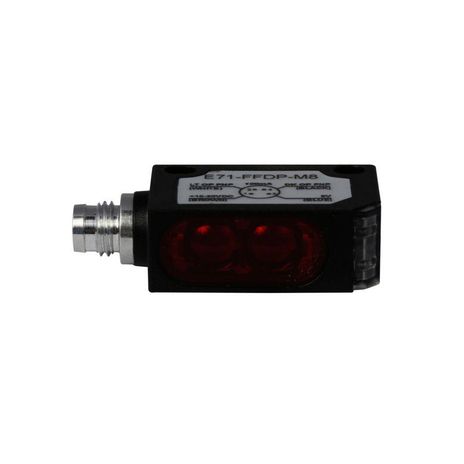

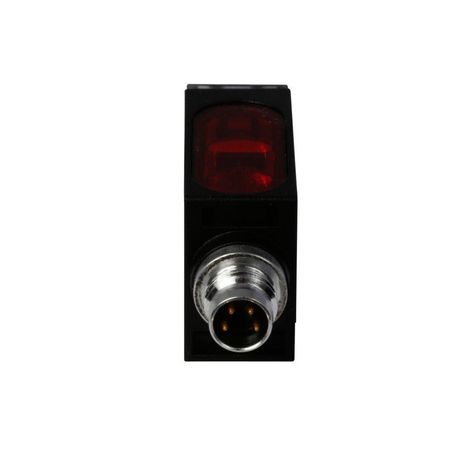

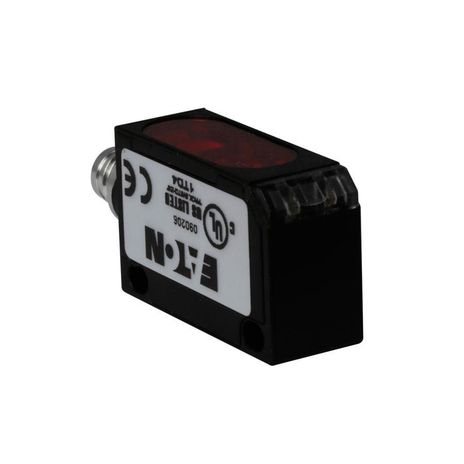

Eaton E71 NanoView miniature photoelectric sensor

Discontinued - Contact Us For Pricing & Availability

Product Details

Eaton Nanoview Photoelectric Sensor, E71, Diffuse Reflective, 3.9 in focused range, Forward Viewing, Output (yellow), stability (green), power (green), M8, 100 mA at 10-30 Vdc, 4 pin, Complementary PNP open collector, 10-30 Vdc

Attributes

Connection	M8
Contact Configuration	Complementary PNP open collector
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	ABS UL 94V-0
Environmental Rating	IP67
Input Voltage	10-30 Vdc
Led Indicator	Output: yellow Power: green Stability: green
Maximum Dc Current	100 mA
Number Of Pins	4.0000
Number Of Wires	4
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit and reverse polarity
Sensor Type	Narrow Through beam
Series	E71
