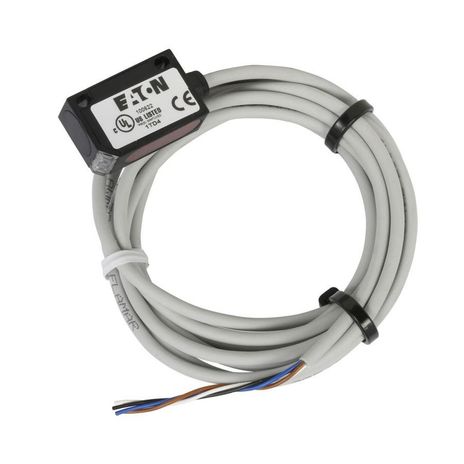

Eaton E71-TBRN-CA

Name: Eaton E71-TBRN-CA
Brand: Eaton
SKU: CS4873893
Availability: OutOfStock

SKU: CS4873893MPN: E71-TBRN-CAUPC/EAN: 786685262130

Eaton E71 NanoView miniature photoelectric sensor

Product Details

Eaton Photoelectric Sensor, E71, Through Beam, 19 ft range, Forward Viewing, Output (yellow), stability (green), power (green), 6.6 ft, 100 mA at 10-30 Vdc, PVC, Complementary NPN open collector, 10-30 Vdc

Attributes

Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	Complementary PNP open collector
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	ABS UL 94V-0
Environmental Rating	IP67
Input Voltage	10-30 Vdc
Led Indicator	Output: yellow Stability: green Power: green
Maximum Dc Current	100 mA
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit and reverse polarity
Sensor Type	Through beam
Series	E71
Type	Photoelectric Sensor
