Eaton 13102AQD07
SKU: CS5018818MPN: 13102AQD07UPC/EAN: 782113962443

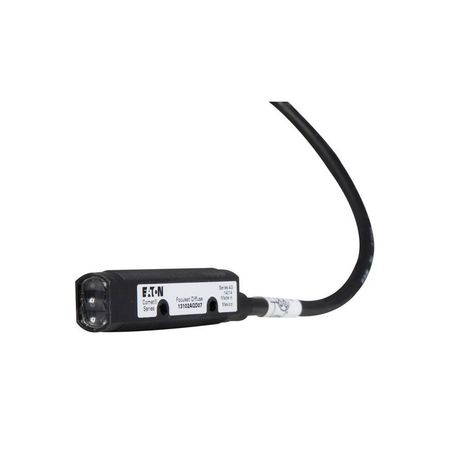

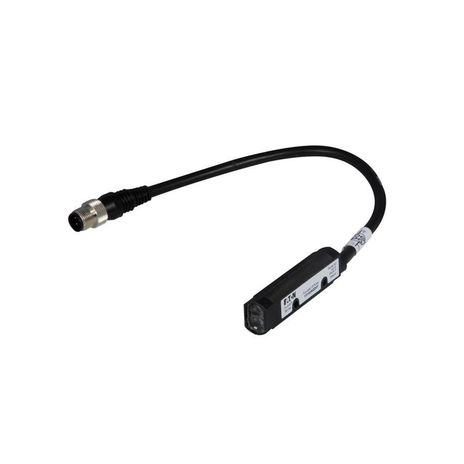

Eaton Comet 18mm tubular photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Comet 18mm tubular photoelectric sensor, Diffuse Reflective, 1.6 in focused range, Forward Viewing, Output ON, M12, 100 mA PNP, 250 mA NPN at 10-30 Vdc, 4 pin, NPN and PNP open collector, 10-30 Vdc
Attributes
| Connection | M12 |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 100 mA PNP, 250 mA NPN at 10-30 Vdc |
| Enclosure Material | Polyurethane foam (RIM) |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K |
| Input Voltage | 10-30 Vdc |
| Led Indicator | Output ON |
| Maximum Dc Current | 100 mA PNP, 250 mA NPN |
| Number Of Pins | 4.0000 |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Auto reset short circuit |
| Sensor Type | Diffuse reflective |
Specifications
| SKU | CS5018818 |
|---|---|
| MPN | 13102AQD07 |
| UPC/EAN | 782113962443 |
