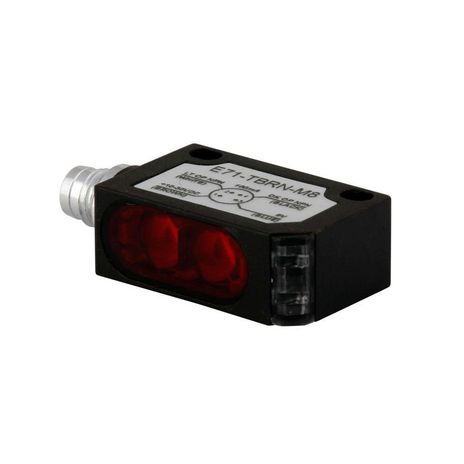

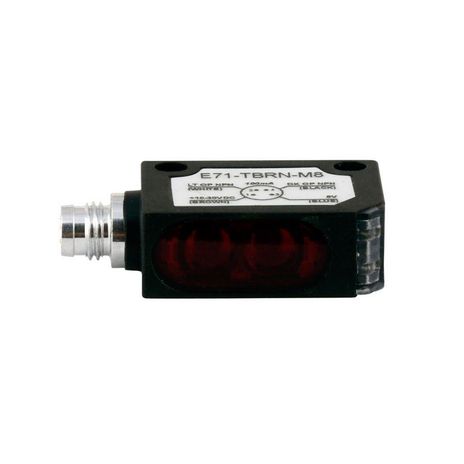

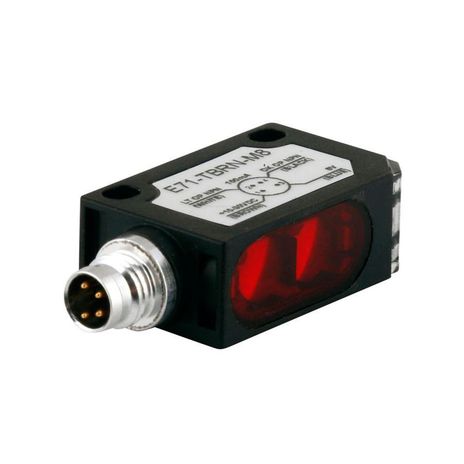

Eaton E71-TBRN-M8
SKU: CS4873894MPN: E71-TBRN-M8UPC/EAN: 786685262253
Eaton E71 NanoView miniature photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Photoelectric Sensor, E71, Through Beam, 19 ft range, Forward Viewing, Output (yellow), stability (green), power (green), M8, 100 mA at 10-30 Vdc, 4 pin, Complementary NPN open collector, 10-30 Vdc
Attributes
| Connection | M8 |
| Contact Configuration | Complementary PNP open collector |
| Contact Rating | 100 mA at 10-30 Vdc |
| Enclosure Material | ABS UL 94V-0 |
| Environmental Rating | IP67 |
| Input Voltage | 10-30 Vdc |
| Led Indicator | Stability: green Output: yellow Power: green |
| Maximum Dc Current | 100 mA |
| Number Of Pins | 4.0000 |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Short circuit and reverse polarity |
| Sensor Type | Through beam |
| Series | E71 |
Specifications
| SKU | CS4873894 |
|---|---|
| MPN | E71-TBRN-M8 |
| UPC/EAN | 786685262253 |
You may also like
Eaton E71-FFDP-M8
Discontinued - Contact Us For Pricing & Availability
Eaton E71-COP-M8
Discontinued - Contact Us For Pricing & Availability
Eaton E71-TBRN-CA
Contact us for pricing and availability

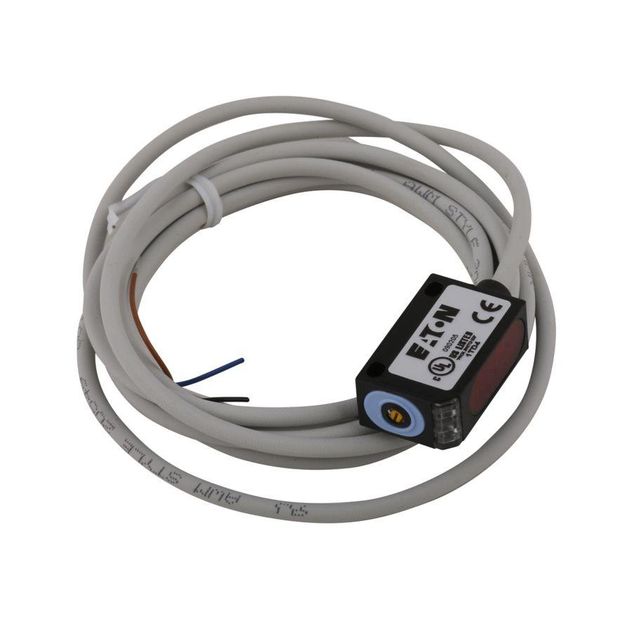

Eaton E71-COP-CA
