Eaton E71-SDN-M8

Name: Eaton E71-SDN-M8
Brand: Eaton
SKU: CS4873892
Availability: OutOfStock

SKU: CS4873892MPN: E71-SDN-M8UPC/EAN: 786685262215

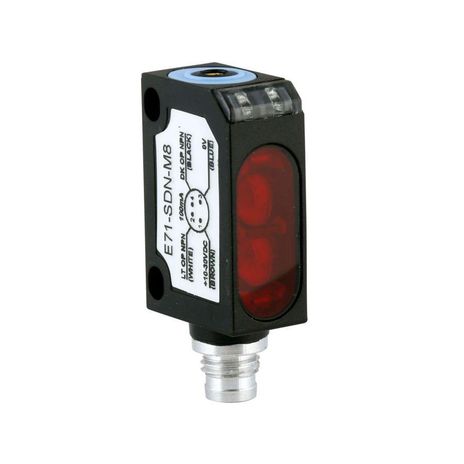

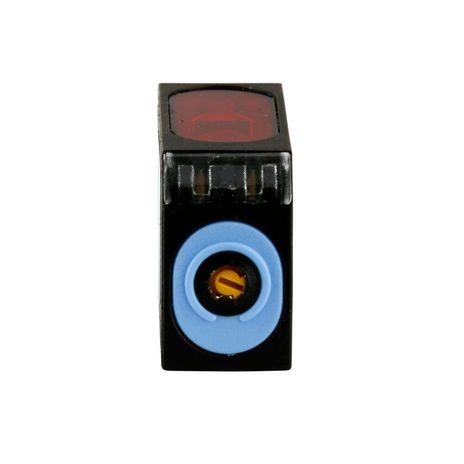

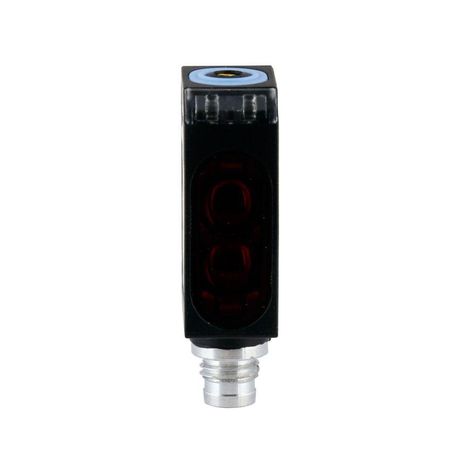

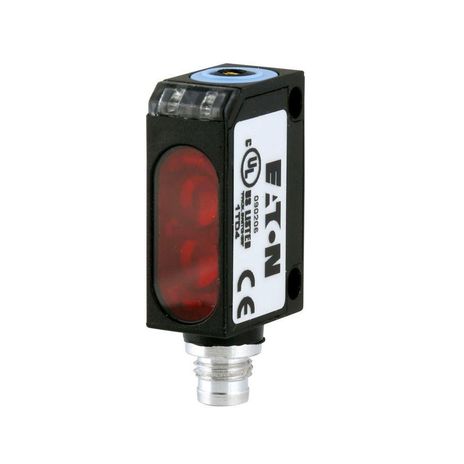

Eaton E71 NanoView miniature photoelectric sensor

Product Details

Eaton Nanoview Photoelectric Sensor, E71, Diffuse Reflective, 13.8 in range, Forward Viewing, Output (yellow), stability (green), power (green), M8, 100 mA at 10-30 Vdc, 4 pin, Complementary NPN open collector, 10-30 Vdc

Attributes

Connection	M8
Contact Configuration	Complementary PNP open collector
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	ABS UL 94V-0
Environmental Rating	IP66
Input Voltage	10-30 Vdc
Led Indicator	Stability: green Power: green Output: yellow
Maximum Dc Current	100 mA
Number Of Pins	4.0000
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit and reverse polarity
Sensor Type	Diffuse reflective
Series	E71
