Eaton E65-SMPR3-GD

Name: Eaton E65-SMPR3-GD
Brand: Eaton
SKU: CS4873750
Price: 204.03 USD
Availability: OutOfStock

SKU: CS4873750MPN: E65-SMPR3-GDUPC/EAN: 782114389928

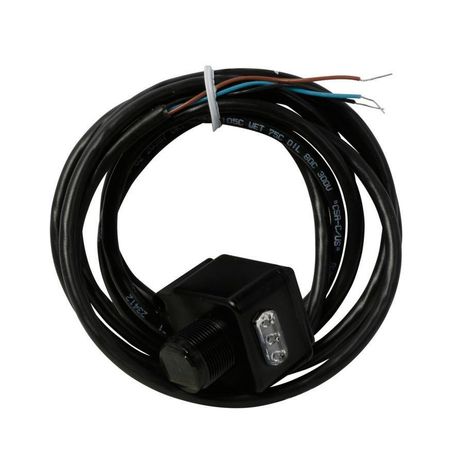

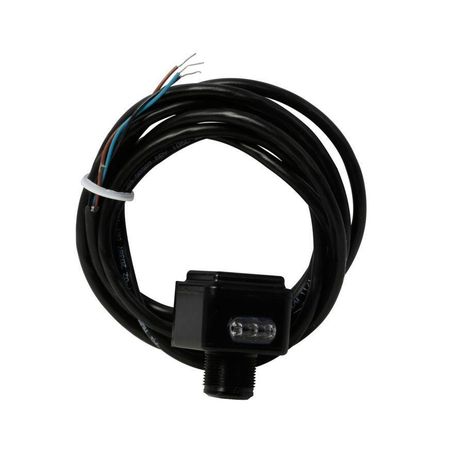

Eaton E65 SM compact photoelectric sensor

Eaton E65-SMPP050-GD, E65-SMPP050-GL, E65-SMPP050-HD, E65-SMPP050-HL, E65-SMPP100-GD, E65-SMPP100-GL, E65-SMPP100-HD, E65-SMPP100-HL, E65-SMPR3-GD, E65-SMPR3-HD, E65-SMPR3-HL, E65-SMSD200-GD, E65-SMSD200-GL, E65-SMSD200-HD, E65-SMSD200-HL

Eaton E65-SMPP050-GD, E65-SMPP050-GDD, E65-SMPP050-GL, E65-SMPP050-GLD, E65-SMPP050-HD, E65-SMPP050-HDD, E65-SMPP050-HL, E65-SMPP100-GD, E65-SMPP100-GDD, E65-SMPP100-GL, E65-SMPP100-GLD, E65-SMPP100-HD, E65-SMPP100-HDD, E65-SMPP100-HL, E65-SMPR3-GD

$204.03

Unit

Available on backorder

Quantity

remove

add

Product Details

Eaton SM Series Rectangular Body Photoelectric Sensor, Sensor dist 10 Ft., 200 mA max AC/DC, AC: L1 Switched, DC: NPN Open Collector, 200 mA DC NPN/AC 3-Wire, 6.6 Ft. (2m) Cable, 18–264 Vac/18–50 Vdc input, 6.6 Ft. (2m)

Attributes

Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	DC: NPN open collector AC: L1 switched
Contact Rating	200 mA DC NPN / 200 mA AC 3 - Wire
Enclosure Material	Lens: polycarbonate Body: cycoloy Cable jacket: PVC
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K
Input Voltage	18-264 Vac, 18-50 Vdc
Led Indicator	Marginal gain: orange Power on: green Output status: red
Maximum Ac Current	200 mA
Maximum Dc Current	200 mA
Operating Mode	Polarized retroreflective
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Polarized retroreflective
Switch Type	Photoelectric
