Eaton E65-SMPR3-GLD

Name: Eaton E65-SMPR3-GLD
Brand: Eaton
SKU: CS893763
Price: 204.03 USD
Availability: OutOfStock

SKU: CS893763MPN: E65-SMPR3-GLDAlternate Part #s: E65-SMPR3-GLDEAT-E65-SMPR3-GLDUPC/EAN: 782114753583

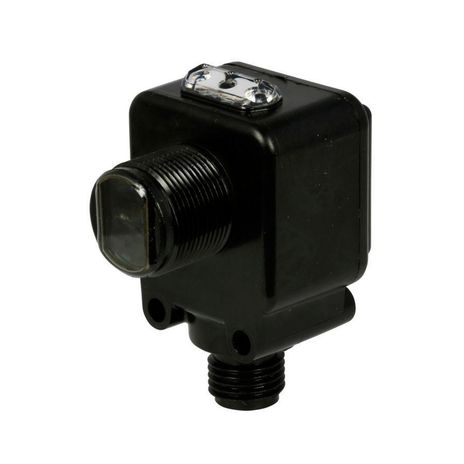

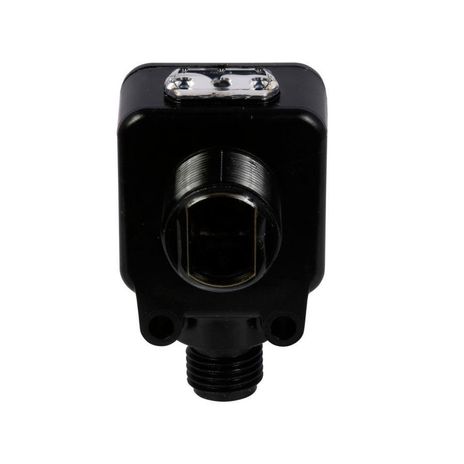

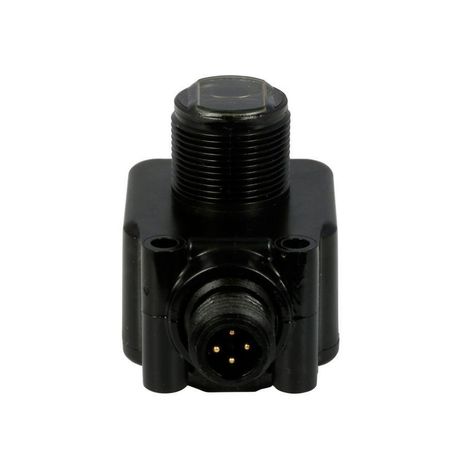

Eaton E65 SM compact photoelectric sensor

Eaton E65-SMPP050-GDD, E65-SMPP050-GLD, E65-SMPP050-HDD, E65-SMPP050-HLD, E65-SMPP100-GDD, E65-SMPP100-GLD, E65-SMPP100-HDD, E65-SMPP100-HLD, E65-SMPR3-HLD, E65-SMSD200-GDD, E65-SMSD200-GLD, E65-SMSD200-HDD, E65-SMSD200-HLD, E65-SMTD15-HDD, E65-SMTD15-HLD

Eaton E65-SMPP050-GD, E65-SMPP050-GDD, E65-SMPP050-GL, E65-SMPP050-GLD, E65-SMPP050-HD, E65-SMPP050-HDD, E65-SMPP050-HL, E65-SMPP100-GD, E65-SMPP100-GDD, E65-SMPP100-GL, E65-SMPP100-GLD, E65-SMPP100-HD, E65-SMPP100-HDD, E65-SMPP100-HL, E65-SMPR3-GD

Product Details

Eaton Photoelectric Sensor, E65, Polarized Retroreflective, Forward Viewing, Power (green), output (red), TargetLock (orange), Dual key micro, 200 mA at 18-264 Vac/18-50 Vdc, 4 pin, AC: L1 switched, DC: NPN open collector

Attributes

Connection	M12
Contact Configuration	NPN and PNP open collector
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	Lens: polycarbonate Cable jacket: PVC Body: cycoloy
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K 2
Input Voltage	10-30 Vdc
Led Indicator	TargetLock Output Power
Maximum Dc Current	100 mA
Number Of Pins	4.0000
Operating Mode	Dark
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset short circuit
Sensor Type	Polarized retroreflective
Series	E65
Type	Polarized Retroreflective
