Eaton E50BT2

SKU: CS4871866MPN: E50BT2UPC/EAN: 782113361857

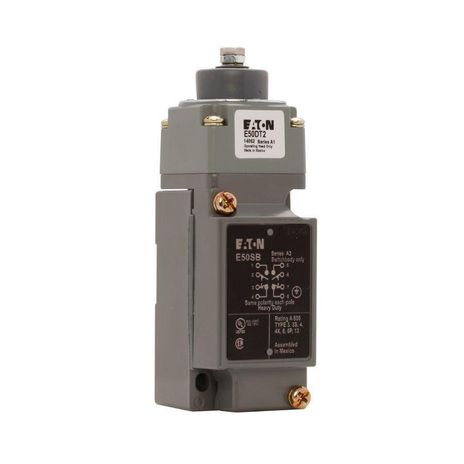

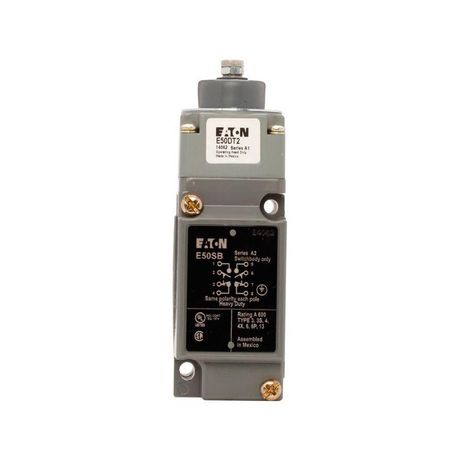

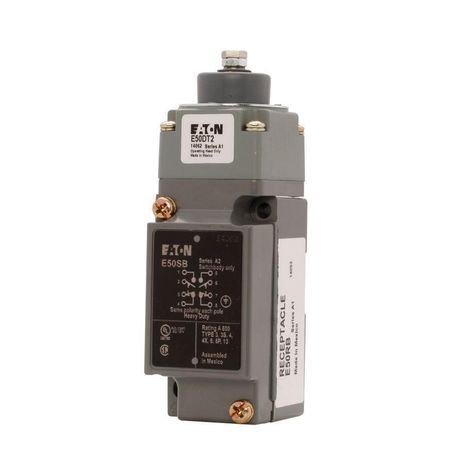

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2
Eaton E50AT26P, E50BS26P, E50BT2, E50BT26P
Eaton E50BT2
Eaton E50BT2
Eaton E50BT2
Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2
Eaton E50AT26P, E50BS26P, E50BT2, E50BT26P
Contact us for pricing and availability

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10A at 240 Vac,1A at 250 Vdc,Top pushbutton,2NO-2NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A continuous,1A,14° to 201°F (-10° to 94°C)

Attributes

Actuator Top pushbutton
Connection Screw terminal
Contact Configuration 2 NO-2 NC
Contact Rating 10A at 240 Vac, 1A at 250 Vdc
Enclosure Material Die cast zinc
Environmental Rating NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current 10 A continuous
Maximum Dc Current 1 A
Operating Temperature Max 201 FAH
Operating Temperature Max Uom FAH
Operating Temperature Min 14 FAH
Operating Temperature Min Uom FAH
Series E50
Type Assembly

Specifications

SKUCS4871866
MPNE50BT2
UPC/EAN782113361857
