All ProductsEaton

Eaton E50BM1

SKU: CS921020MPN: E50BM1UPC/EAN: 782113361833

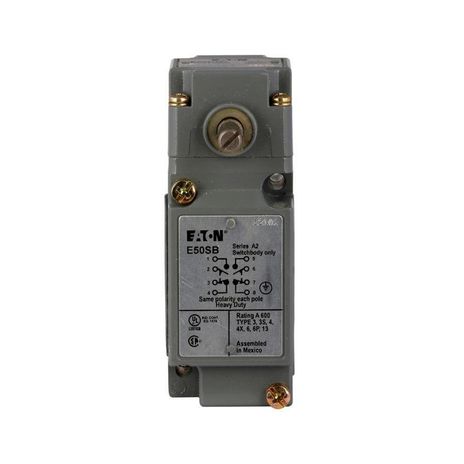

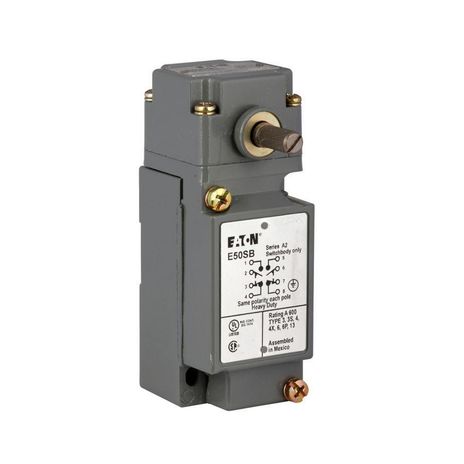

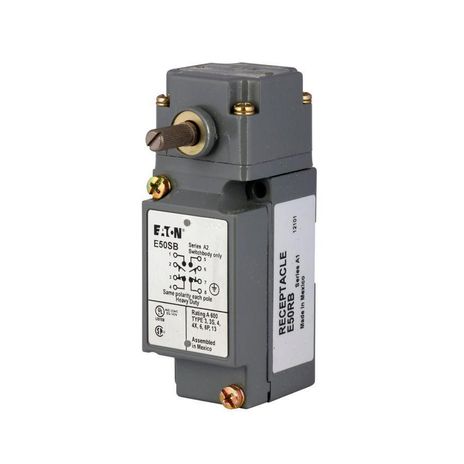

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50BM1
Eaton E50AL1, E50AR1, E50BM1, E50BR1, E50NN1, E50NN1SPL, E50NN2
Eaton E50BM1
Eaton E50BM1
Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2
Eaton E50BM1
Eaton E50AL1, E50AR1, E50BM1, E50BR1, E50NN1, E50NN1SPL, E50NN2
Contact us for pricing and availability

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch,Screw Terminals,10A at 240Vac,1A at 250Vdc,2NO-2NC,Die Cast Zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A,1A,14° to 201°F (-10° to 94°C),Side Rotary,Maintained

Attributes

Accuracy Refer to installation publication P15836
Connection Screw terminal
Contact Configuration 2 NO-2 NC
Contact Rating 10A at 240Vac, 1A at 250Vdc
Enclosure Material Die cast zinc
Environmental Rating NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current 10 A
Maximum Dc Current 1 A
Operating Temperature Max 201 FAH
Operating Temperature Max Uom FAH
Operating Temperature Min 14 FAH
Operating Temperature Min Uom FAH
Switch Type Side rotary Maintained

Specifications

SKUCS921020
MPNE50BM1
UPC/EAN782113361833
