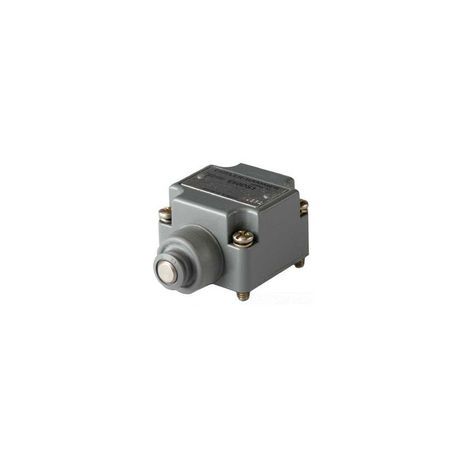

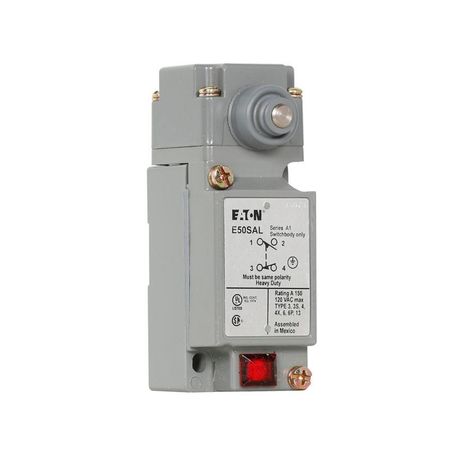

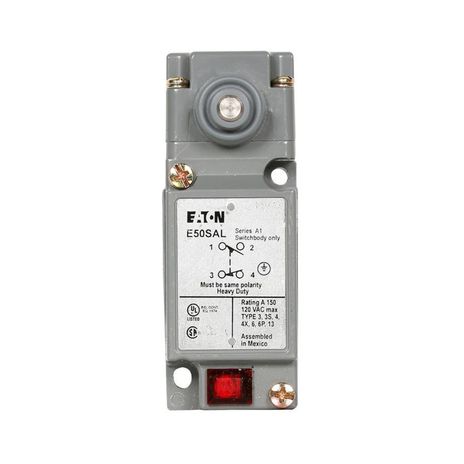

Eaton E50ALS1
SKU: CS4871694MPN: E50ALS1UPC/EAN: 782113836607
Eaton E50 NEMA heavy duty plug-in limit switch
Contact us for pricing and availability
Product Details
Eaton E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10A at 12Vac,1A at 125Vdc,Side pushbutton,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,LED indicator,24-120Vac/dc,10A continuous,1A,14°to201°F,E50
Attributes
| Actuator | Side pushbutton |
| Connection | Screw terminal |
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 10A at 12 Vac, 1A at 125 Vdc |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Led Indicator | LED indicator |
| Light Unit Voltage | 24-120 Vac/dc |
| Maximum Ac Current | 10 A continuous |
| Maximum Dc Current | 1 A |
| Operating Temperature Max | 201 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 14 FAH |
| Operating Temperature Min Uom | FAH |
| Series | E50 |
| Type | Assembly |
Specifications
| SKU | CS4871694 |
|---|---|
| MPN | E50ALS1 |
| UPC/EAN | 782113836607 |
