Eaton E50BT3

Name: Eaton E50BT3
Brand: Eaton
SKU: CS4871868
Price: 573.90 USD
Availability: OutOfStock

SKU: CS4871868MPN: E50BT3UPC/EAN: 782113320069

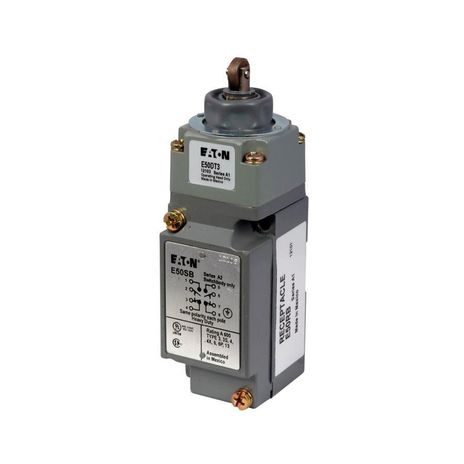

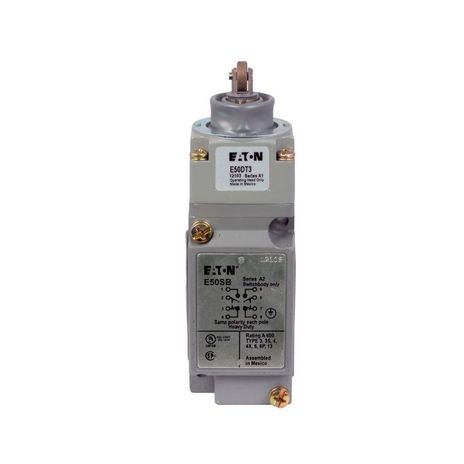

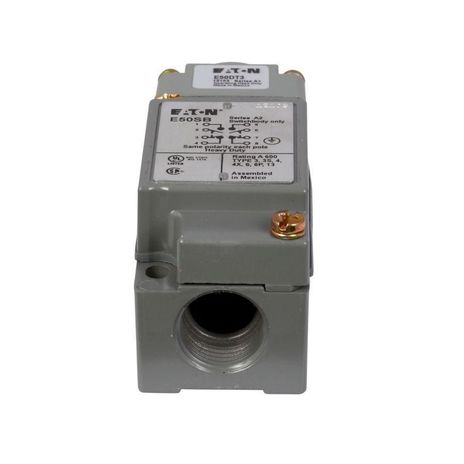

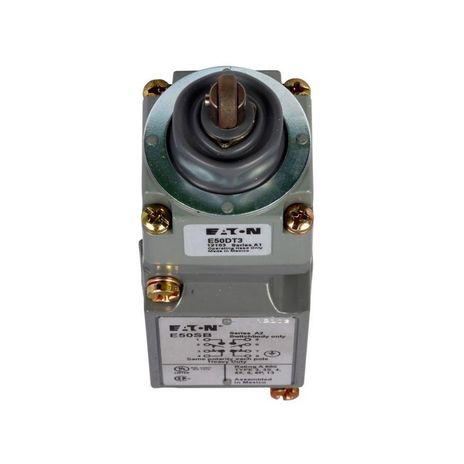

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AS26P, E50AT36P, E50BT3, E50BT36P

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10A at 240 Vac,1A at 250 Vdc,Top push roller,spring return,2NO-2NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A continuous,1A,14° to 201°F (-10° to 94°C),E50

Attributes

Actuator	Top push roller, spring return
Connection	Screw terminal
Contact Configuration	2 NO-2 NC
Contact Rating	10A at 240 Vac, 1A at 250 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current	10 A continuous
Maximum Dc Current	1 A
Operating Temperature Max	201 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	14 FAH
Operating Temperature Min Uom	FAH
Series	E50
Type	Assembly
