Eaton E50AW1

Name: Eaton E50AW1
Brand: Eaton
SKU: CS3575547
Price: 424.54 USD
Availability: OutOfStock

SKU: CS3575547MPN: E50AW1UPC/EAN: 782113320045

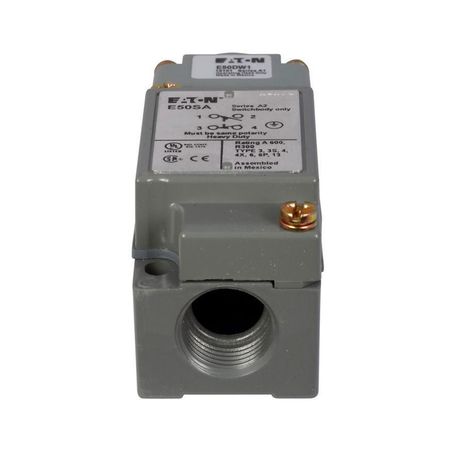

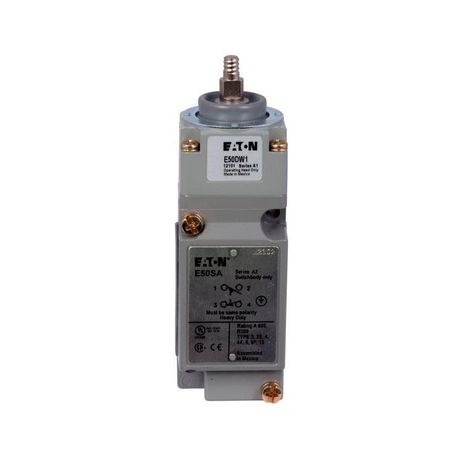

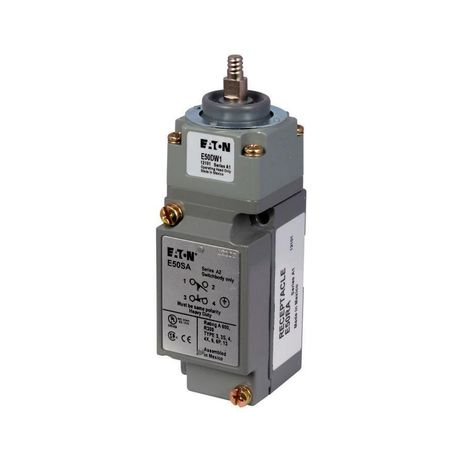

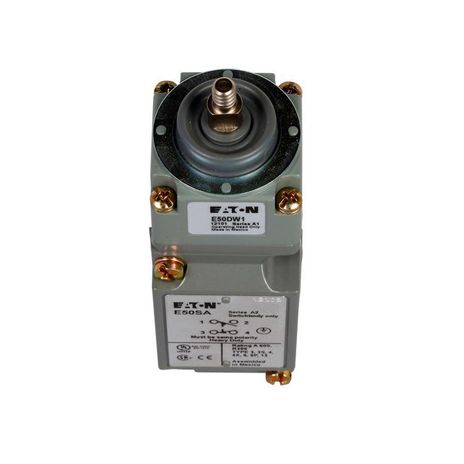

Eaton E50 NEMA heavy duty plug-in limit switch

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10A at 240 Vac,1A at 250 Vdc,Wobble head,spring return,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A continuous,1A,14° to 201°F (-10° to 94°C),E50

Attributes

Actuator	Wobble head, spring return
Connection	Screw terminal
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 240 Vac, 1A at 250 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current	10 A continuous
Maximum Dc Current	1 A
Operating Temperature Max	201 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	14 FAH
Operating Temperature Min Uom	FAH
Series	E50
Type	Assembly
