Eaton E49M11BP1
SKU: CS4871621MPN: E49M11BP1UPC/EAN: 782113680927

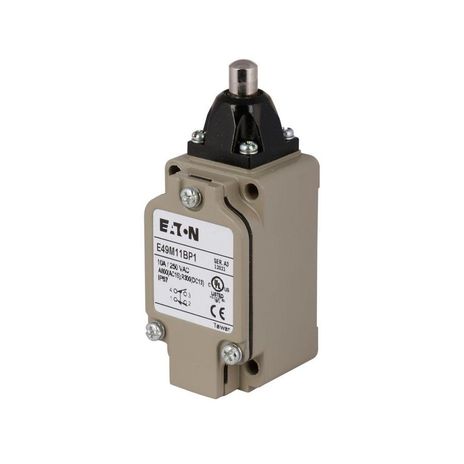

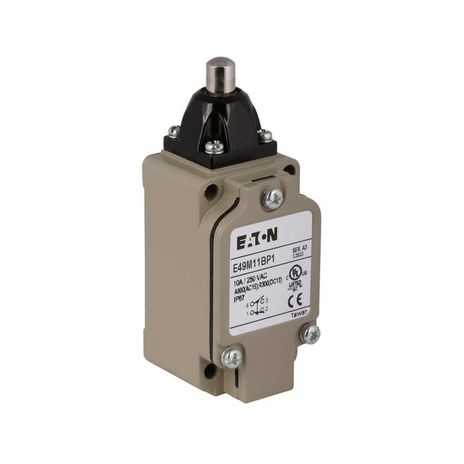

Eaton E49 compact metal limit switch
Contact us for pricing and availability
Product Details
Assembled Limit Switch, E49, Top push, Screw Terminals, 10A at 250 Vac, 1.5A at 24 Vdc, Standard DIN, 1 mm-2m/s, 1NO-1NC
Attributes
| Actuator | Top push |
| Connection | Screw terminal |
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 10A at 250 Vac, 1.5A at 24 Vdc |
| Enclosure Material | Die cast aluminum |
| Environmental Rating | IP67 |
| Maximum Ac Current | 10 A continuous |
| Maximum Dc Current | 1.5 A |
| Mounting Method | Standard DIN rail |
| Operating Speed | 1 mm-2m/s |
| Operating Temperature Max | 176 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 14 FAH |
| Operating Temperature Min Uom | FAH |
| Series | E49 |
Specifications
| SKU | CS4871621 |
|---|---|
| MPN | E49M11BP1 |
| UPC/EAN | 782113680927 |
You may also like
Eaton E49M11CP1
$159.96Unit
Eaton E49M11VP1
$159.96Unit
Eaton E49M11DP1
Contact us for pricing and availability
Eaton E49M11UP1
$177.28Unit
Eaton E49M11AP1
Contact us for pricing and availability
Eaton E49M11UP1Y2
Contact us for pricing and availability

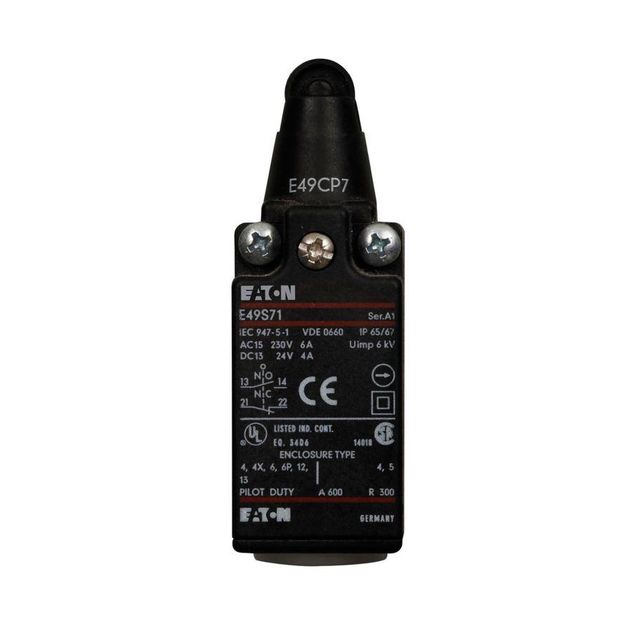

Eaton E49S71
