Eaton E49M11UP1Y2
SKU: CS4871624MPN: E49M11UP1Y2UPC/EAN: 786685284255

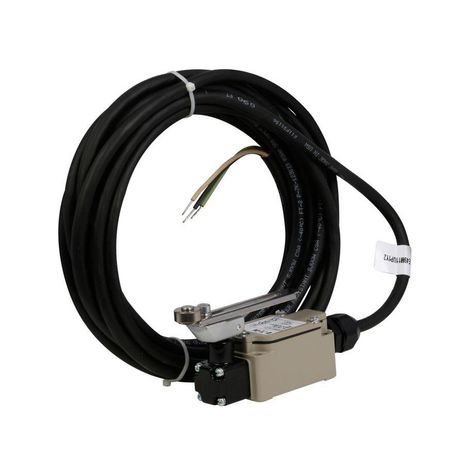

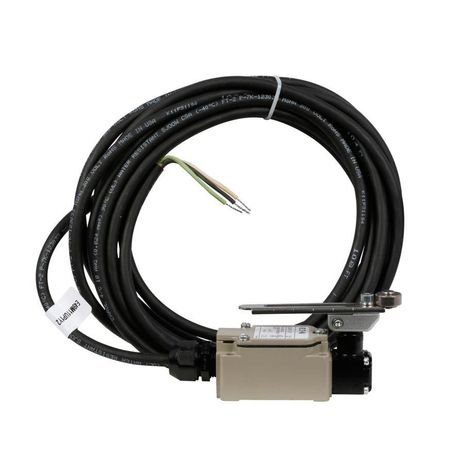

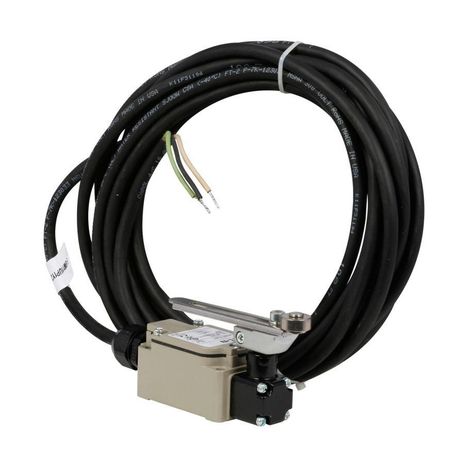

Eaton E49 compact metal limit switch
$282.40
UnitAvailable on backorder
Product Details
Assembled Limit Switch, E49, Adjustable roller lever, Screw Terminals, 10A at 250 Vac, 1.5A at 24 Vdc, Standard DIN, 1 mm-2m/s, 1NO-1NC, 20 ft cable
Attributes
| Accessories | 20 ft cable |
| Actuator | Adjustable roller lever |
| Connection | Screw terminal |
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 10A at 250 Vac, 1.5A at 24 Vdc |
| Enclosure Material | Die cast aluminum |
| Environmental Rating | IP67 |
| Maximum Ac Current | 10 A continuous |
| Maximum Dc Current | 1.5 A |
| Mounting Method | Standard DIN rail |
| Operating Speed | 1 mm-2m/s |
| Operating Temperature Max | 176 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 14 FAH |
| Operating Temperature Min Uom | FAH |
| Series | E49 |
Specifications
| SKU | CS4871624 |
|---|---|
| MPN | E49M11UP1Y2 |
| UPC/EAN | 786685284255 |
