Square D ZB5AW7A3740

Name: Square D ZB5AW7A3740
Brand: Square D
SKU: CS4814247
Availability: OutOfStock

SKU: CS4814247MPN: ZB5AW7A3740

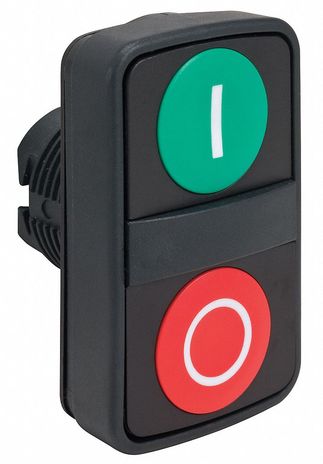

Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked

Product Details

Green flush/red flush illuminated double-headed pushbutton Dia22 unmarked

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	dark grey plastic
Device Presentation	basic sub-assemblies
Device Short Name	ZB5
Head Type	standard
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Profile	2 flush push-buttons - 1 central pilot light
Operator Profile 1	2 flush push-buttons - 1 central pilot light
Operators Description	green unmarked - red unmarked
Product Certifications	CSA# #GL# #BV# #UL listed# #LROS (Lloyds register of shipping)# #DNV
Product Compatibility	integral LED
Product Or Component Type	head for illuminated double-headed push-button
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	rectangular
Standards	EN/IEC 60947-5-4# #UL 508# #JIS C8201-5-1# #EN/IEC 60947-1# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #JIS C8201-1
