Square D XB5AL73415

Name: Square D XB5AL73415
Brand: Square D
SKU: CS4813984
Price: 85.69 USD
Availability: OutOfStock

SKU: CS4813984MPN: XB5AL73415

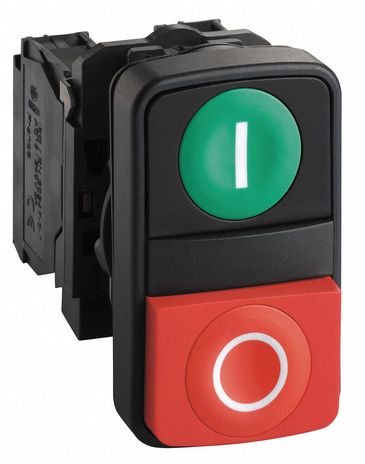

Double headed push button, Harmony XB5, plastic, 22mm, 1 green flush marked I + 1 red projecting marked O, 1NO+1NC

$85.69

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony Projecting Illuminated Double-Headed Pushbutton

Mounting Diameter: 22mm* Shape of Signaling Unit Head: Rectangular* Type of Operator: Spring Return* Operator Profile: 1 Flush, 1 Projecting Pushbuttons* Operators Description: Green “I”, Red “O”* Contacts Type and Composition: 1 NO + 1 NC* Contact Operation: Slow-break* Connections - Terminals: Screw clamp terminals* Rated Insulation Voltage: 600V (degree of pollution: 3) conforming to EN 60947-1* Degree of Protection: NEMA 4X, 13

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	dark grey plastic
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB5
Fixing Collar Material	plastic
Head Type	standard
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Profile	1 flush - 1 projecting push-buttons
Operator Profile 1	1 flush - 1 projecting push-buttons
Operators Description	green “I” - red “O”
Product Certifications	CSA# #GL# #UL listed# #LROS (Lloyds register of shipping)# #DNV# #BV
Product Or Component Type	double-headed push-button
Protective Treatment	TH
Range Of Product	Harmony XB5
Shape Of Signaling Unit Head	rectangular
Standards	EN/IEC 60947-5-4# #JIS C8201-5-1# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/IEC 60947-1# #UL 508# #JIS C8201-1
Terminals Description Iso N 1	(21-22)NC# #(13-14)NO
