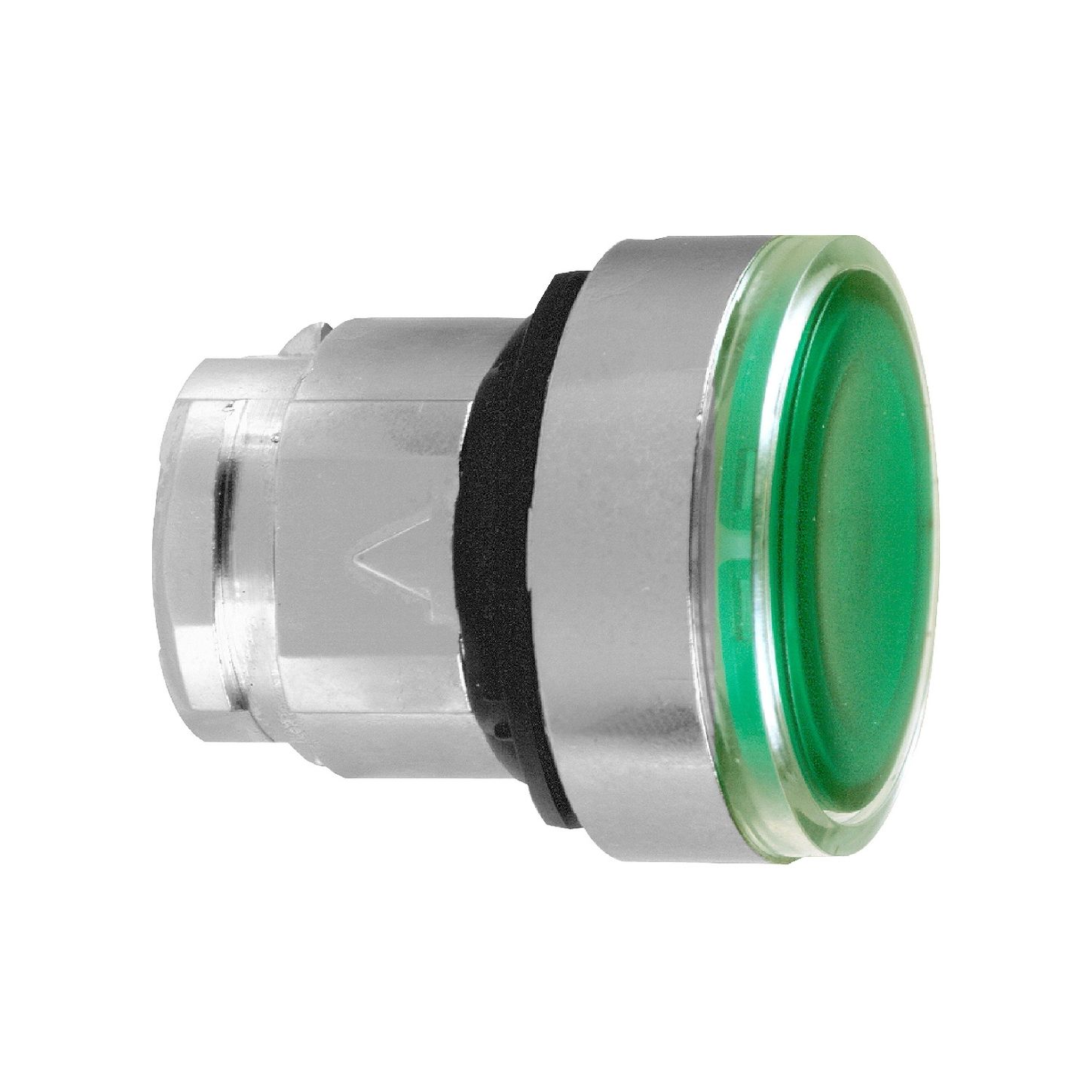

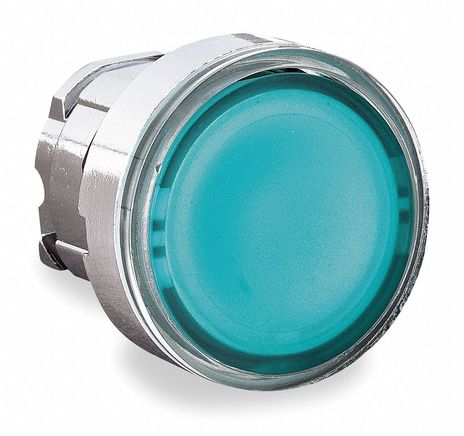

Square D ZB4BH033

Name: Square D ZB4BH033
Brand: Square D
SKU: CS1652490
Availability: OutOfStock

SKU: CS1652490MPN: ZB4BH033

Head for illuminated push button, Harmony XB4, metal, green flush, 22mm, universal LED, push push, unmarked

Product Details

Illuminated push button head, metal, flush, green, Ø22, push-push, integral LED,

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Device Presentation	basic element
Device Short Name	ZB4
Head Type	standard
Mechanical Durability	500000 cycles
Mounting Diameter	22 mm
Product Certifications	DNV# #LROS (Lloyds register of shipping)# #UL listed# #CSA# #BV# #GL
Product Compatibility	integral LED
Product Or Component Type	head for illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	CSA C22.2 No 14# #EN/IEC 60947-5-1# #UL 508# #EN/IEC 60947-5-4# #EN/IEC 60947-1# #JIS C8201-5-1# #EN/IEC 60947-5-5# #JIS C8201-1
