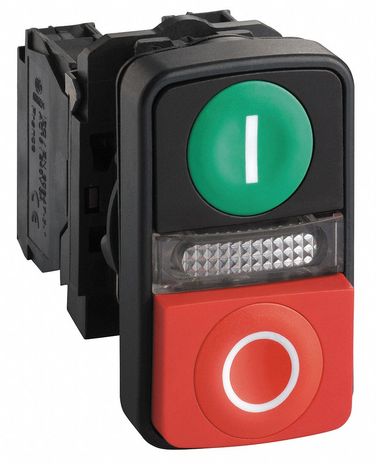

Square D XB5AW73731B5

Name: Square D XB5AW73731B5
Brand: Square D
SKU: CS4813988
Availability: OutOfStock

SKU: CS4813988MPN: XB5AW73731B5

Illuminated double headed push button, Harmony XB5, plastic, 22mm, 1 green flush I + 1 pilot light + 1 red projecting O, 1 NO + 1 NC

Product Details

Harmony Projecting Illuminated Double-Headed Pushbutton

Mounting Diameter: 22mm* Shape of Signaling Unit Head: Rectangular* Type of Operator: Spring Return* Operator Profile: 1 Flush, 1 Projecting Pushbuttons, 1 Central Pilot Light* Operators Description: Green “I”, Red “O”* Contacts Type and Composition: 1 NO + 1 NC* Rated Supply Voltage: 24V AC/DC 50/60 Hz

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	dark grey plastic
Bulb Base	integral LED
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Current Consumption	18 mA
Device Presentation	complete product
Device Short Name	XB5
Fixing Collar Material	plastic
Head Type	standard
Light Source	protected LED
Light Source Colour	yellow
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Profile	1 flush - 1 projecting push-buttons - 1 central pilot light
Operator Profile 1	1 flush - 1 projecting push-buttons - 1 central pilot light
Operators Description	green “I” - red “O”
Product Certifications	LROS (Lloyds register of shipping)# #GL# #DNV# #UL listed# #BV# #CSA
Product Or Component Type	illuminated double-headed push-button
Protective Treatment	TH
Range Of Product	Harmony XB5
Shape Of Signaling Unit Head	rectangular
Signalling Type	steady
Signalling Type 1	steady
Standards	EN/IEC 60947-5-1# #UL 508# #EN/IEC 60947-1# #JIS C8201-5-1# #CSA C22.2 No 14# #EN/IEC 60947-5-4# #JIS C8201-1
Terminals Description Iso N 1	(11-12)NC# #(13-14)NO
