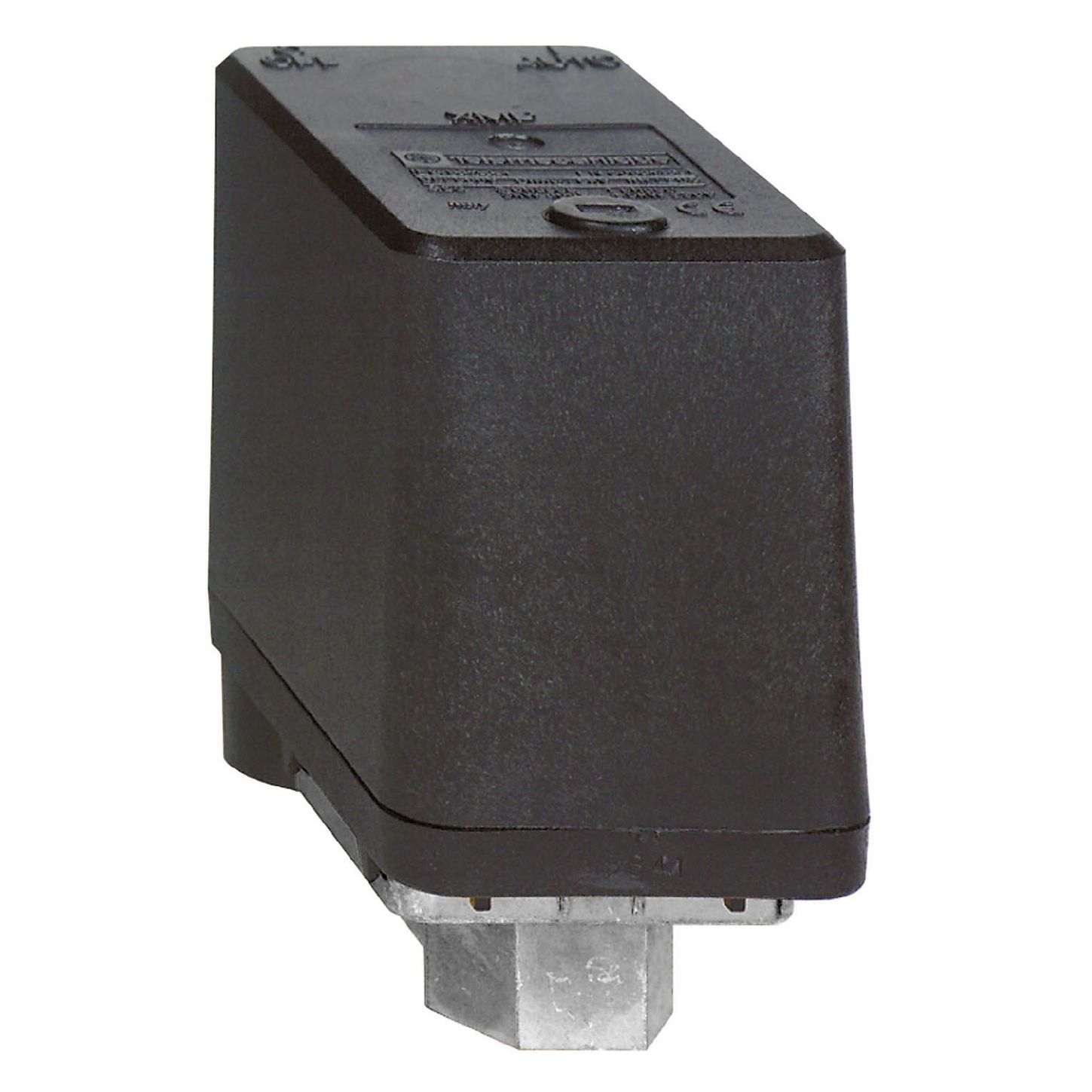

Square D XMPA06B2131

Name: Square D XMPA06B2131
Brand: Square D
SKU: CS4814086
Availability: OutOfStock

SKU: CS4814086MPN: XMPA06B2131

Pressure sensors XM, pressure sensor XMP, 6 bar, G ¼ female, 2 NC, without control type

Product Details

Pressure sensors XM, pressure sensor XMP, 6 bar, G ¼ female, 2 NC, without control type

Adjustable Range Of Switching Point On Falling Pressure	0.2-4.8 bar
Adjustment Range High Setting	1-6 bar
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Control Type	without
Destruction Pressure	30 bar
Electrical Circuit Type	power circuit
Enclosure Material	PA impregnated with fibreglass
Local Display	without
Materials In Contact With Fluid	canvas covered nitrile# #chromated zinc alloy
Maximum Operating Rate	10 cyc/mn
Mechanical Durability	1000000 cycles
Operating Position	any position
Possible Differential Maximum At High Setting	4.2 bar
Possible Differential Minimum At High Setting	1.2 bar
Possible Differential Minimum At Low Setting	0.8 bar
Pressure Actuator	diaphragm
Pressure Sensor Name	XMP
Pressure Sensor Size	6 bar
Pressure Sensor Size 1	6 bar
Pressure Sensor Type	electromechanical pressure sensor
Pressure Switch Type Of Operation	regulation between 2 thresholds
Product Certifications	EAC
Product Specific Application	-
Range Of Product	OsiSense XM
Sale Per Indivisible Quantity	1.0000
Scale Type	adjustable differential
Setting	nut
Standards	EN/IEC 60947-4-1# #CE
Terminal Block Type	4 terminals
Terminals Description Iso N 1	(3-4)NC# #(1-2)NC
Type Of Decompression Valve	without
