Square D XMLPM00GC21F

Name: Square D XMLPM00GC21F
Brand: Square D
SKU: CS4814081
Availability: OutOfStock

SKU: CS4814081MPN: XMLPM00GC21F

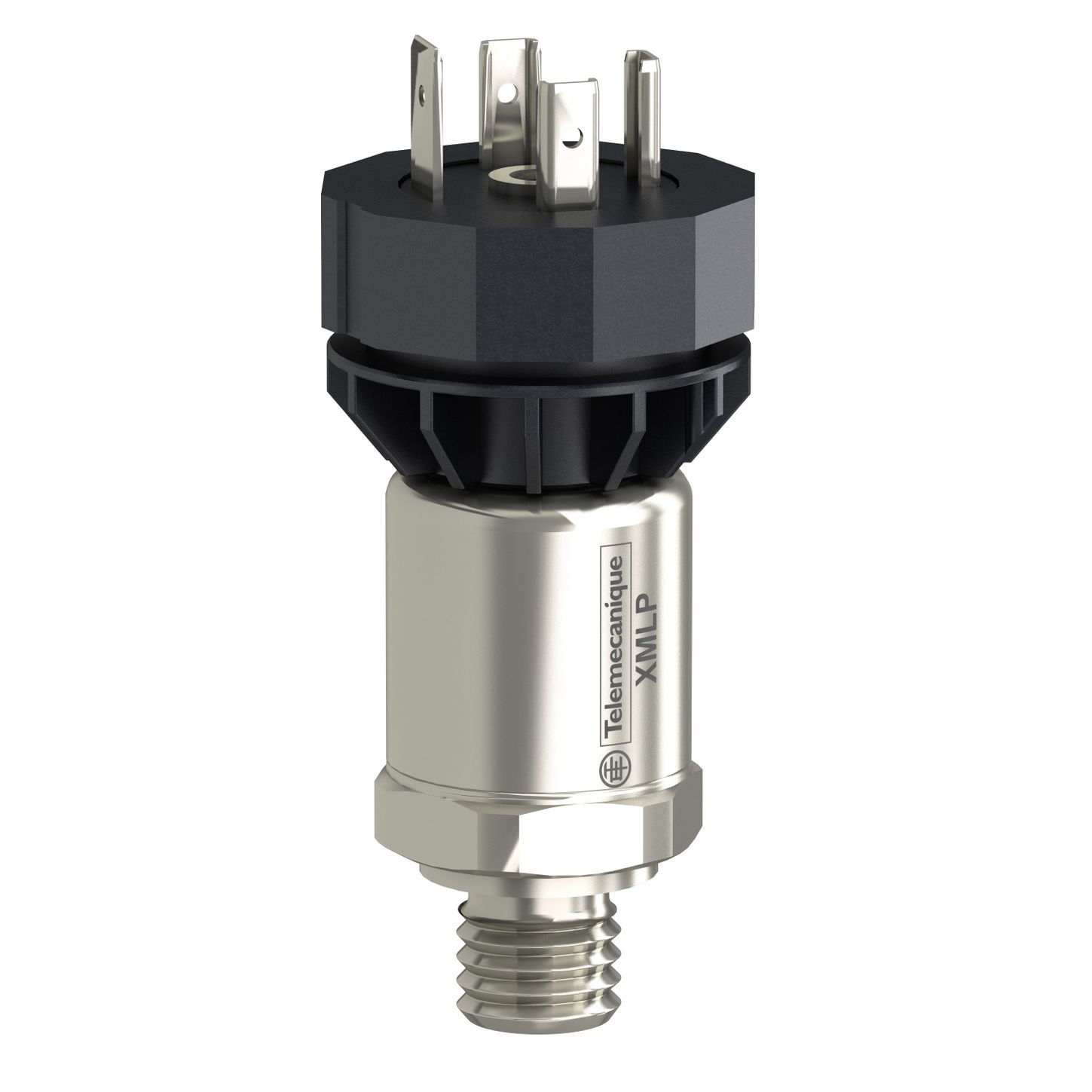

Electronic pressure sensors, Pressure sensors XM, vacuum transmitter -1 bar, 4...20 mA, G¼ A male, FPM, DIN

Product Details

Electronic pressure sensors, Pressure sensors XM, vacuum transmitter -1 bar, 4...20 mA, G¼ A male, FPM, DIN

Uimp Rated Impulse Withstand Voltage	0.5 kV
Accuracy	0.1 % of the measuring range
Ambient Air Temperature For Operation	-30-85 °C
Ambient Air Temperature For Operation 1	-30-85 °C
Ambient Air Temperature For Storage	-50-100 °C
Current Consumption	< 23 mA
Destruction Pressure	5 bar
Diameter	26 mm
Drift Of The Sensitivity	± 0.02 % of measuring range/°K
Drift Of The Zero Point	± 0.02 % of measuring range/°K
Electrical Circuit Type	control circuit
Local Display	without
Materials In Contact With Fluid	stainless steel AISI 316L# #ceramic# #fluorocarbon FPM
Maximum Permissible Accidental Pressure	3 bar
Measurement Accuracy	± 0.5 % of the measuring range
Mechanical Durability	10000000 cycles
Operating Position	any position
Pressure Sensor Name	XMLP
Pressure Sensor Type	pressure transmitter
Pressure Setting Range	-1-0 bar
Product Certifications	EAC# #RCM# #CE# #cULus
Product Or Component Type	electronic pressure sensors
Protection Type	load short-circuit# #reverse polarity
Quantity Per Set	set of 1
Range Of Product	OsiSense XM
Repeat Accuracy	± 0.25 % of the measuring range
Repeat Accuracy 1	± 0.25 % of the measuring range
Standards	NSF ANSI 61# #EN/IEC 61326-2-3
Type Of Output Signal	analogue
Type Of Packing	individual
