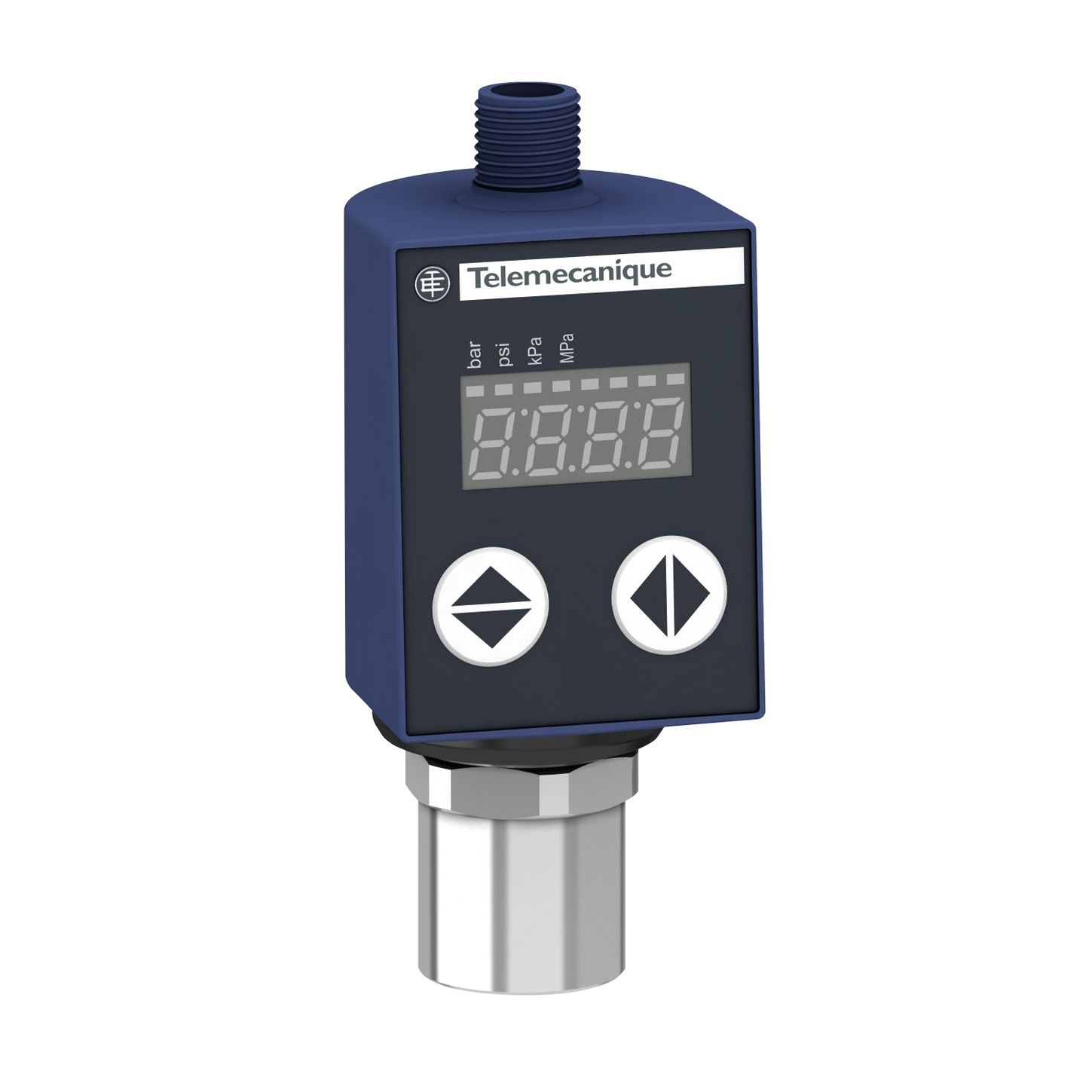

Square D XMLR010G0T26

Name: Square D XMLR010G0T26
Brand: Square D
SKU: CS4814085
Availability: OutOfStock

SKU: CS4814085MPN: XMLR010G0T26

Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, ¼” 18 NPT, 24 VDC, 4...20 mA, M12

Product Details

Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, ¼” 18 NPT, 24 VDC, 4...20 mA, M12

Attributes

Accuracy	<= 1 % of the measuring range
Ambient Air Temperature For Operation	-20-80 °C
Ambient Air Temperature For Operation 1	-20-80 °C
Ambient Air Temperature For Storage	-40-80 °C
Analogue Output Function	4…20 mA
Current Consumption	<= 50 mA
Destruction Pressure	580 psi# #40 bar# #4 MPa
Device Short Name	XMLR
Display Accuracy	<= 1 % of the measuring range
Display Type	4 digits 7 segments
Drift Of The Sensitivity	± 0.03 % of measuring range/°C
Drift Of The Zero Point	± 0.1 % of measuring range/°C
Front Material	polyester
Housing Material	polyacrylamide# #316L stainless steel
Hysteresis	<= 0.2 % of the measuring range
Linearity Error	<= 0.5 % of the measuring range
Marking	CE
Marking 1	CE
Materials In Contact With Fluid	ceramic# #316L stainless steel# #fluorocarbon FKM (Viton)
Maximum Delay First Up	300 ms
Maximum Permissible Accidental Pressure	40 bar# #4 MPa# #580 psi
Measurement Accuracy	<= 0.6 % of the measuring range
Mechanical Durability	10000000 cycles
Pressure Sensor Size	145 psi# #10 bar
Pressure Sensor Size 1	145 psi# #10 bar
Pressure Sensor Type	pressure transmitter
Pressure Switch Type Of Operation	pressure transmitter
Product Certifications	EAC# #cULus
Product Or Component Type	electronic pressure sensors
Protection Type	reverse polarity# #overvoltage protection# #short-circuit protection# #overload protection
Range Of Product	OsiSense XM
Repeat Accuracy	<= 0.2 % of the measuring range
Repeat Accuracy 1	<= 0.2 % of the measuring range
Scale Type	fixed differential
Standards	EN/IEC 61326-2-3# #UL 61010-1
Type Of Output Signal	analogue
