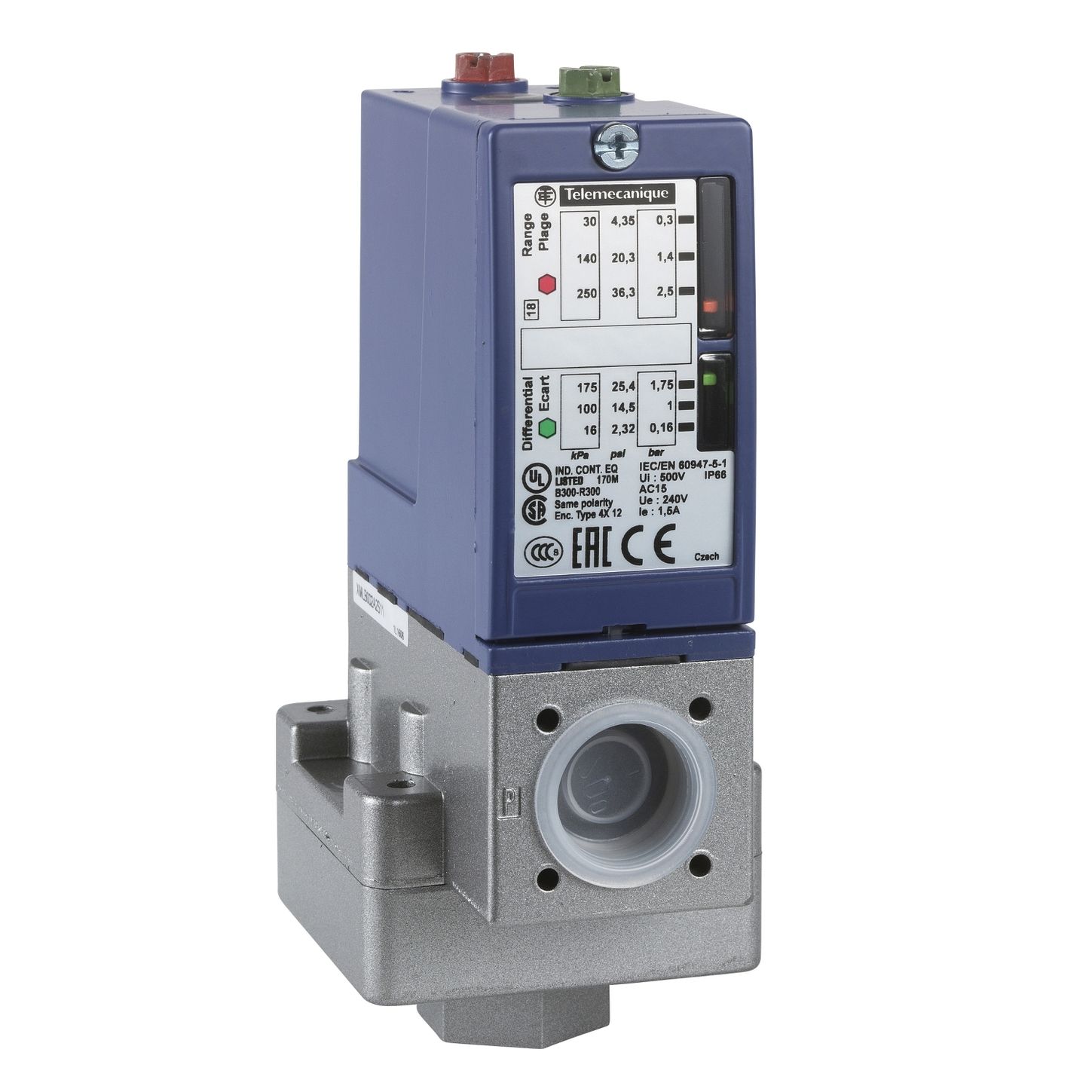

Square D XMLB002A2S11

Name: Square D XMLB002A2S11
Brand: Square D
SKU: CS4814061
Availability: OutOfStock

SKU: CS4814061MPN: XMLB002A2S11

pressure switch XMLB 2.5 bar - adjustable scale 2 thresholds - 1 C/O

Product Details

Pressure switch XMLB 2.5 bar - adjustable scale 2 thresholds - 1 C/O

Adjustable Range Of Switching Point On Falling Pressure	0.14-2.29 bar
Adjustable Range Of Switching Point On Rising Pressure	0.3-2.5 bar
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Auxiliary Contacts Operation	snap action
Awg Gauge	AWG 20…AWG 14
Contacts Material	silver contacts
Destruction Pressure	18 bar
Device Short Name	XMLB
Electrical Circuit Type	control circuit
Enclosure Material	zinc alloy
Local Display	with
Materials In Contact With Fluid	nitrile# #zinc alloy
Maximum Permissible Accidental Pressure	9 bar
Maximum Permissible Pressure Per Cycle	5 bar
Mechanical Durability	8000000 cycles
Operating Position	any position
Possible Differential Maximum At High Setting	1.75 bar
Pressure Actuator	diaphragm
Pressure Sensor Size	2.5 bar
Pressure Sensor Size 1	2.5 bar
Pressure Sensor Type	electromechanical pressure sensor
Pressure Switch Type Of Operation	regulation between 2 thresholds
Product Certifications	EAC# #BV# #UL# #LROS (Lloyds register of shipping)# #CCC# #CSA
Product Or Component Type	electromechanical pressure sensor
Product Specific Application	-
Range Of Product	Telemecanique Pressure sensors XM
Scale Type	adjustable differential
Setting	external
Standards	CE# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #UL 508
Terminal Block Type	4 terminals
