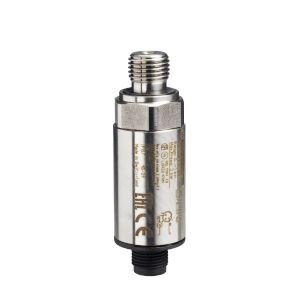

Square D XMLP250MD21F

Name: Square D XMLP250MD21F
Brand: Square D
SKU: CS4814077
Availability: OutOfStock

SKU: CS4814077MPN: XMLP250MD21F

Electronic pressure sensors, Pressure sensors XM, transmitter 250mbar, 4...20 mA, G¼ A male, FPM, M12

Product Details

PRESSURE TRANSMITTER 250 mbar, 4..20mA, G¼ Male, M12

Uimp Rated Impulse Withstand Voltage	0.5 kV
Ambient Air Temperature For Operation	-30-85 °C
Ambient Air Temperature For Operation 1	-30-85 °C
Ambient Air Temperature For Storage	-50-100 °C
Current Consumption	< 23 mA
Destruction Pressure	5 bar
Diameter	26 mm
Drift Of The Sensitivity	± 0.02 % of measuring range/°K
Drift Of The Zero Point	± 0.05 % of measuring range/°K
Electrical Circuit Type	control circuit
Local Display	without
Materials In Contact With Fluid	fluorocarbon FPM# #stainless steel AISI 316L# #ceramic
Maximum Permissible Accidental Pressure	3 bar
Measurement Accuracy	± 2 % of the measuring range
Mechanical Durability	10000000 cycles
Operating Position	any position
Pressure Sensor Name	XMLP
Pressure Sensor Type	pressure transmitter
Pressure Setting Range	0-0.25 bar
Product Certifications	cULus# #CE# #RCM# #EAC
Product Or Component Type	electronic pressure sensors
Protection Type	reverse polarity# #load short-circuit
Quantity Per Set	set of 1
Range Of Product	OsiSense XM
Repeat Accuracy	± 0.2 % of the measuring range
Repeat Accuracy 1	± 0.2 % of the measuring range
Standards	EN/IEC 61326-2-3# #NSF ANSI 61
Type Of Output Signal	analogue
Type Of Packing	individual
