Square D XCSDMC790L01M8

Name: Square D XCSDMC790L01M8
Brand: Square D
SKU: CS4814038
Availability: OutOfStock

SKU: CS4814038MPN: XCSDMC790L01M8

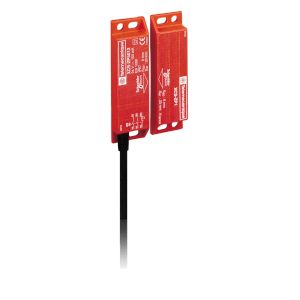

Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMC, 2 NC, staggered, M8 0.15 m

Product Details

Preventa Coded Magnetic Switch

Material: Plastic* Contacts Type and Composition: 2 NC* Contact Operation: Staggered* Electrical Connection: Connector on flying lead* Number of Poles: 2-Poles* Rated Operational Voltage: 24V DC* Rated Insulation Voltage: 100V DC* Degree of Protection: IP67 conforming to IEC 60529

Sa Assured Operating Distance	5 mm
Sa Assured Operating Distance 1	5 mm
Sar Assured Tripping Distance	15 mm
Ambient Air Temperature For Operation	-25-85 °C
Ambient Air Temperature For Operation 1	-25-85 °C
Ambient Air Temperature For Storage	-40-85 °C
Approach Directions	3 directions
Breaking Capacity	10 VA
Breaking Capacity 1	10 VA
Cable Material	PVC
Component Name	XCSDMC
Connector Type	M8
Contact Operation	staggered
Contacts Material	rhodium
Contacts Type And Composition	2 NC
Design	rectangular, compact
Electrical Connection	connector on flying lead
Electrical Durability	1200000 cycles
Enclosure Material	thermoplastic PBT
Insulation Resistance	1000 MOhm
Material	plastic
Maximum Ie Rated Operational Current	100 mA
Maximum Sensitivity To Magnetic Fields	0.3 mT
Number Of Poles	2.0
Product Certifications	CSA# #UL
Product Or Component Type	coded magnetic switch
Protective Treatment	TH
Range Of Product	Telemecanique Safety switches XCS
Resistance Across Terminals	10 Ohm
Size	51 x 16 x 7 mm
Standards	UL 508# #EN/ISO 12100# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/IEC 60204-1# #ISO 14119
Switching Capacity In Ma	0.1…100 mA
Switching Frequency	150 Hz
