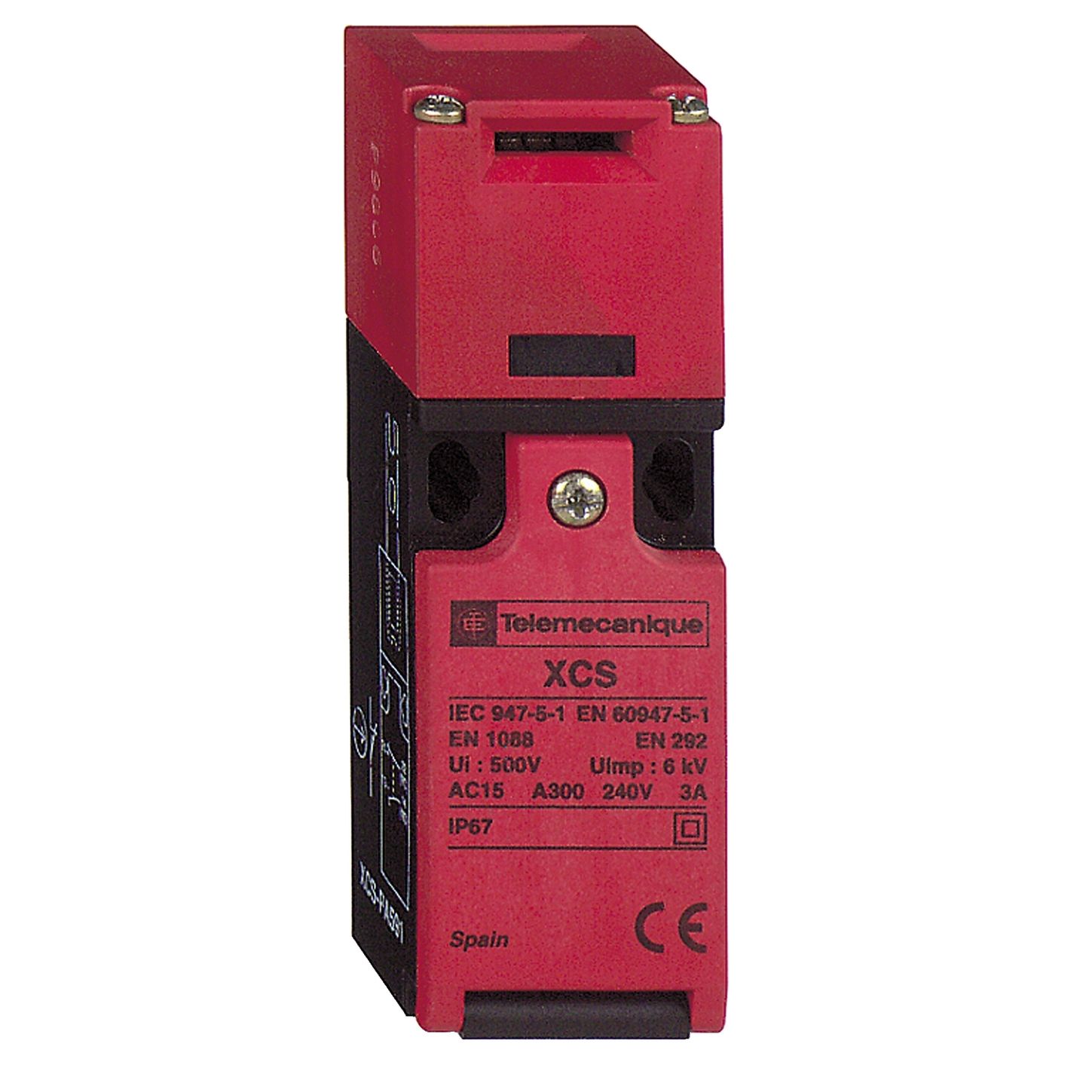

Square D XCSPA792

Name: Square D XCSPA792
Brand: Square D
SKU: CS1679297
Availability: OutOfStock

SKU: CS1679297MPN: XCSPA792

Safety switch, Telemecanique Safety switches XCS, plastic XCSPA, 1 NC + 1 NC, slow break, 1 entry tapped M16

Product Details

Plastic safety switch XCSPA - 1 NC + 1 NC - slow break - 1 entry tapped M16

Ithe Conventional Enclosed Thermal Current	0.417
Actuator Forcible Withdrawal Rtc	10 N
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	PA (polyamide)
Cable Outer Diameter	7-10 mm
Cable Outer Diameter 1	7-10 mm
Component Name	XCSPA
Contact Operation	slow-break, simultaneous
Contacts Type And Composition	2 NC
Design	compact
Head Material	PA (polyamide)
Head Type	key operated turret head
Insulation	double insulated
Locking Options Description	without locking of actuator
Material	plastic
Maximum Actuation Speed	0.5 m/s
Mechanical Durability	1000000 cycles
Minimum Actuation Speed	0.01 m/s
Number Of Poles	2.0
Positive Opening	with NC contact
Positive Opening Minimum Force	15 N
Product Certifications	CSA# #UL
Product Or Component Type	safety switch
Protective Treatment	TC
Range Of Product	Telemecanique Safety switches XCS
Standards	EN/ISO 12100# #EN 1088/ISO 14119# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #UL 508# #EN/IEC 60204-1
