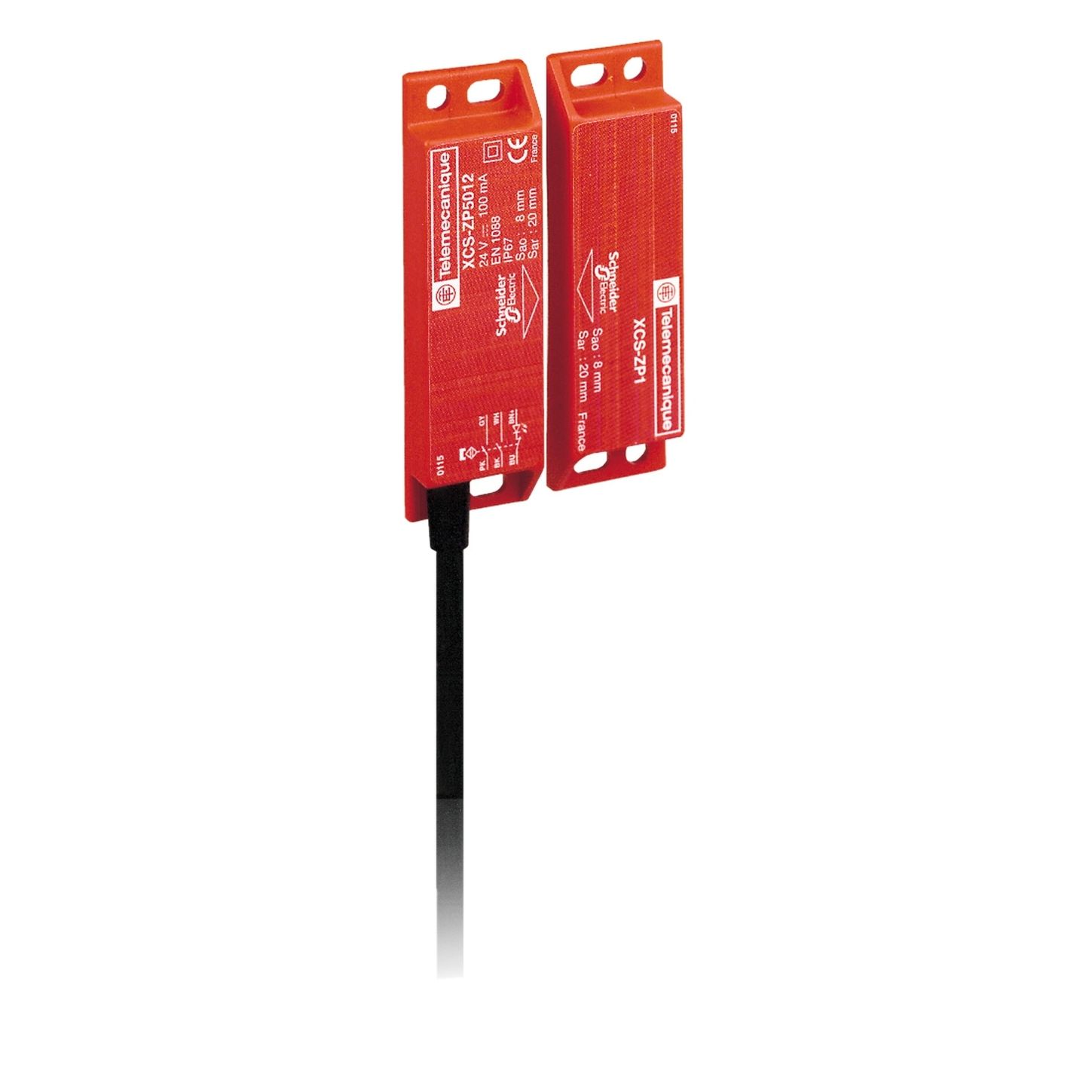

Square D XCSDMP59010

Name: Square D XCSDMP59010
Brand: Square D
SKU: CS3651042
Availability: OutOfStock

SKU: CS3651042MPN: XCSDMP59010

Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 1 NC + 1 NO, staggered, 10 m

Product Details

Coded magnetic switch XCSDMP, 1 NC + 1 NO, staggered, 10m

Sa Assured Operating Distance	8 mm
Sa Assured Operating Distance 1	8 mm
Sar Assured Tripping Distance	20 mm
Ambient Air Temperature For Operation	-25-85 °C
Ambient Air Temperature For Operation 1	-25-85 °C
Ambient Air Temperature For Storage	-40-85 °C
Approach Directions	3 directions
Breaking Capacity	10 VA
Breaking Capacity 1	10 VA
Cable Composition	4 x 0.25 mm²
Cable Material	PVC
Component Name	XCSDMP
Contact Operation	staggered
Contacts Material	rhodium
Contacts Type And Composition	1 NC + 1 NO
Design	rectangular, standard
Electrical Connection	pre-cabled
Electrical Durability	1200000 cycles
Enclosure Material	thermoplastic PBT
Insulation Resistance	1000 MOhm
Material	plastic
Maximum Ie Rated Operational Current	100 mA
Maximum Sensitivity To Magnetic Fields	0.3 mT
Number Of Poles	2.0
Product Certifications	CSA# #UL
Product Or Component Type	coded magnetic switch
Protective Treatment	TH
Range Of Product	Telemecanique Safety switches XCS
Resistance Across Terminals	10 Ohm
Size	88 x 25 x 13 mm
Standards	CSA C22.2 No 14# #EN/IEC 60947-5-1# #EN/IEC 60204-1# #UL 508# #ISO 14119# #EN/ISO 12100
Switching Capacity In Ma	0.1…100 mA
Switching Frequency	150 Hz
