Square D XCSM3702L5

Name: Square D XCSM3702L5
Brand: Square D
SKU: CS3335440
Availability: OutOfStock

SKU: CS3335440MPN: XCSM3702L5

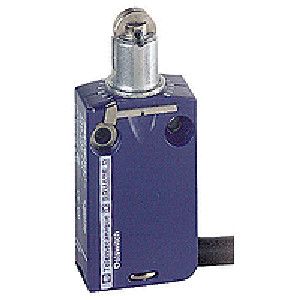

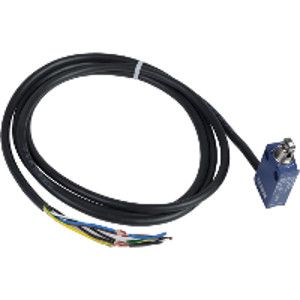

Safety limit switch, Telemecanique Safety switches XCS, XCSM, metal, roller plunger, 2 NC + 1 NO, cable 5 m

Product Details

Safety limit switch XCSM , Metal, Roller plunger, 2 NC + 1 NO, cable 5 m

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	zamak
Cable Composition	7 x 0.5 mm²
Component Name	XCSM
Contact Operation	slow-break, break before make
Design	miniature
Electrical Connection	pre-cabled
Fixing Mode	by the body
Head Material	zamak
Head Type	plunger head
Material	metal
Maximum Actuation Speed	0.5 m/s
Mechanical Durability	10000000 cycles
Minimum Actuation Speed	6 m/min
Minimum Force For Tripping	7 N
Number Of Poles	3.0
Positive Opening	with NC contact
Positive Opening Minimum Force	35 N
Product Certifications	CSA# #UL
Product Or Component Type	safety limit switch
Protection Technology	plastic protective cover, secured by 5-lobe socket head safety screw
Protective Treatment	TC
Range Of Product	Telemecanique Safety switches XCS
Repeat Accuracy	0.05 mm on the tripping points
Repeat Accuracy 1	0.05 mm on the tripping points
Standards	UL 508# #EN/IEC 60204-1# #EN 1088# #EN/IEC 60947-5-1# #CSA C22.2 No 14
Switch Actuation	by 30° cam
Type Of Approach	lateral approach
Type Of Operator	roller plunger
