Square D XB4BW73731B5

Name: Square D XB4BW73731B5
Brand: Square D
SKU: CS3647131
Price: 131.00 USD
Availability: OutOfStock

SKU: CS3647131MPN: XB4BW73731B5

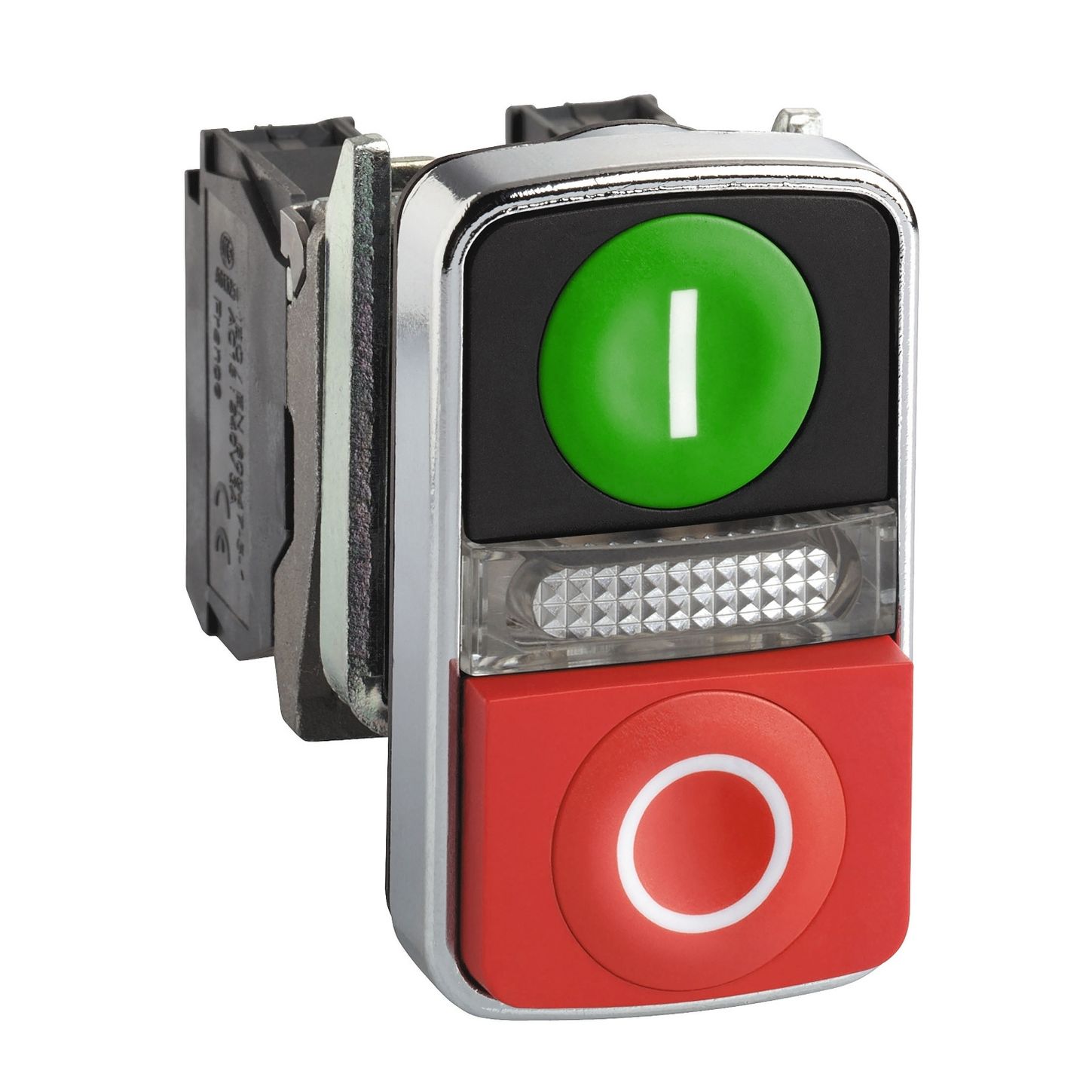

Illuminated double headed push button, Harmony XB4, metal, 22mm, 1 green flush I + 1 pilot light + 1 red projecting O, 1 NO + 1 NC

$131.00

Unit

Available on backorder

Quantity

remove

add

Product Details

Illuminated double-headed push button, metal, Ø22, 1 green flush I + 1 pilot light + 1 red projecting O, 1 NO + 1 NC

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Bulb Base	integral LED
Compatibility Code	XB4
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Current Consumption	18 mA
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Light Source	protected LED
Light Source Colour	white
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Profile	1 flush - 1 projecting push-buttons - 1 central pilot light
Operator Profile 1	1 flush - 1 projecting push-buttons - 1 central pilot light
Operators Description	green “I” - red “O”
Product Certifications	DNV# #LROS (Lloyds register of shipping)# #CSA# #BV# #UL listed# #GL
Product Or Component Type	illuminated double-headed push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Shape Of Signaling Unit Head	rectangular
Signalling Type	steady
Signalling Type 1	steady
Standards	EN/IEC 60947-1# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #JIS C8201-5-1# #EN/IEC 60947-5-5# #EN/IEC 60947-5-4# #UL 508# #JIS C8201-1
