Square D ZB4BA432

Name: Square D ZB4BA432
Brand: Square D
SKU: CS1652516
Price: 18.84 USD
Availability: OutOfStock

SKU: CS1652516MPN: ZB4BA432

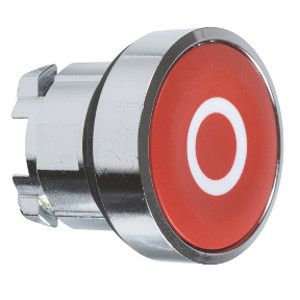

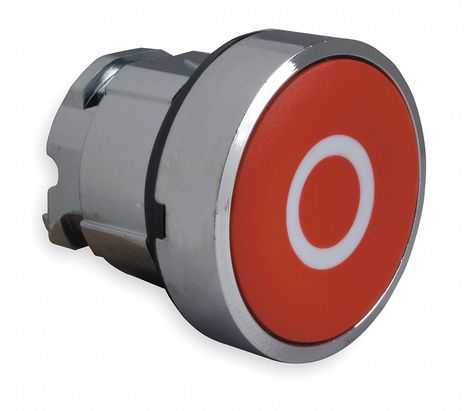

Head for non illuminated push button, Harmony XB4, metal, flush, red, 22mm, spring return, marked O

$18.84

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony Red Flush Pushbutton Head

Mounting Diameter: 22mm* Head Type: Standard* Shape of Signaling Head: Round* Type of Operator: Spring Return* Operator Profile: Red flush, white O* NEMA Degree of Protection: NEMA 4X, 13

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Device Presentation	basic element
Device Short Name	ZB4
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Product Certifications	DNV# #LROS (Lloyds register of shipping)# #CSA# #BV# #GL# #UL listed
Product Or Component Type	head for non-illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-1# #UL 508# #EN/IEC 60947-5-1# #EN/IEC 60947-5-5# #CSA C22.2 No 14# #JIS C8201-5-1# #EN/IEC 60947-5-4# #JIS C8201-1
