Square D RM22TR31
SKU: CS4812682MPN: RM22TR31
3-phase control relay, Harmony Control Relays, 8A, 2CO, overvoltage and undervoltage detection, 200…240V AC
$178.53
UnitAvailable on backorder
Product Details
THREE-PHASE VOLTAGE CONTROL RELAY
- Switching capacity in VA : 2000 VA
- Mounting diameter: 30 mm
- Rated supply voltage : 200...240 V AC
- Output contacts : 2 C/O
Attributes
| Ambient Air Temperature For Storage | -40-70 °C |
| Contacts Material | cadmium free |
| Contacts Type And Composition | 2 C/O |
| Electrical Durability | 100000 cycles |
| Housing Material | self-extinguishing plastic |
| Mechanical Durability | 10000000 cycles |
| Mounting Position | any position |
| Network Number Of Phases | 3 phases |
| Network Number Of Phases 1 | 3 phases |
| Output Contacts | 2 C/O |
| Product Certifications | CSA# #CCC# #EAC# #RCM# #CE# #GL# #UL |
| Product Or Component Type | 3-phase control relay |
| Range Of Product | Harmony Control Relays |
| Relay Monitored Parameters | phase sequence# #phase failure detection# #overvoltage and undervoltage detection |
| Relay Name | RM22TR |
| Relay Type | control relay |
| Run Up Delay At Power Up | 650 ms |
| Safety Reliability Data | MTTFd = 388.1 years# #B10d = 350000 |
| Standards | EN/IEC 60255-1 |
| Switching Capacity In Va | 2000 VA |
| Threshold Adjustment Voltage | 2…20 % of Un selected |
Specifications
| SKU | CS4812682 |
|---|---|
| MPN | RM22TR31 |
You may also like

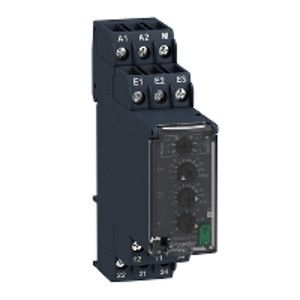

Square D RM22TU23
$189.36Unit
Square D RM22TG20
$89.97Unit
Square D RM22UB34
$158.27Unit

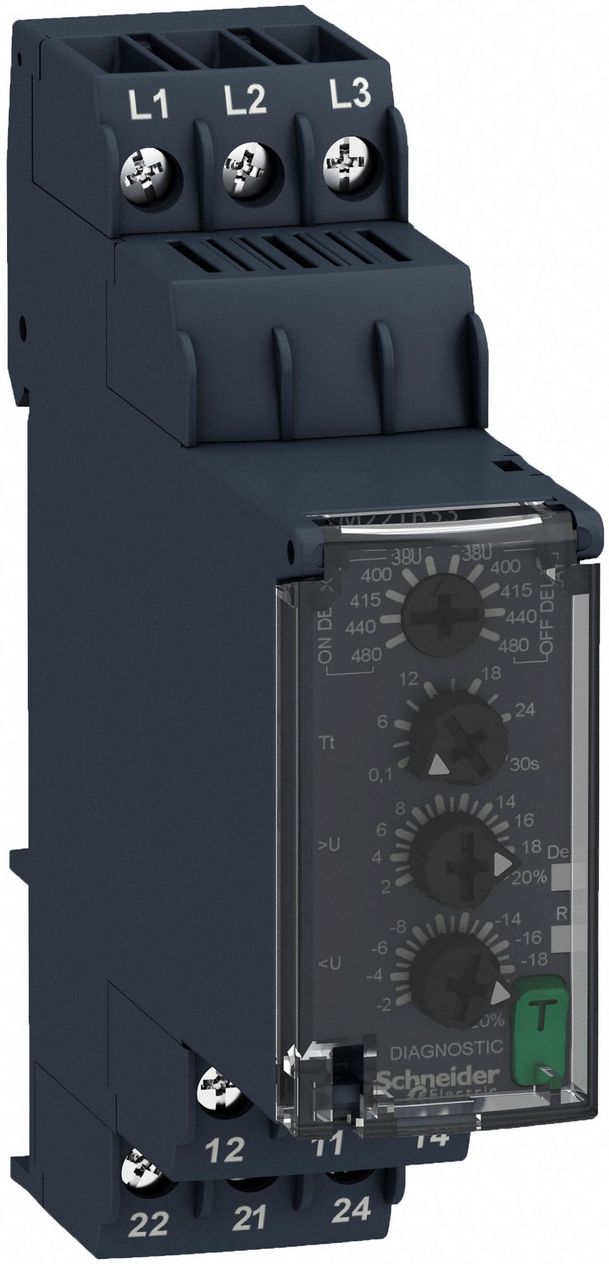

Schneider Electric RM22TR33
$155.45Unit
Square D RM17TU00
$163.92Unit

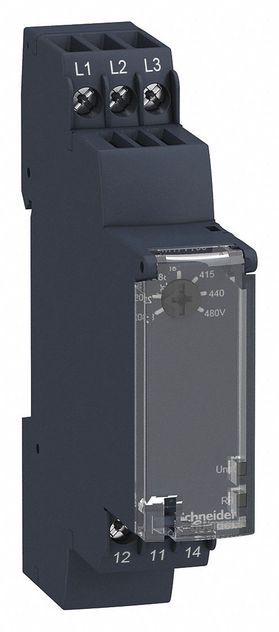

Square D RM17TT00
$170.05Unit

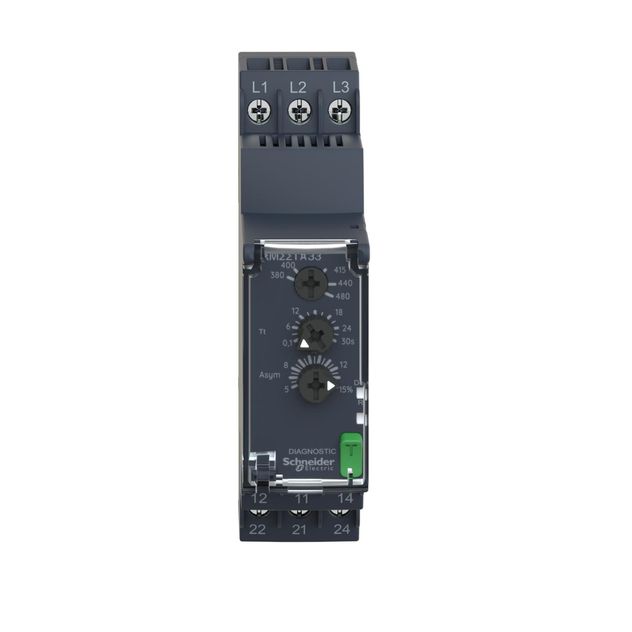

Schneider Electric RM22TA33
