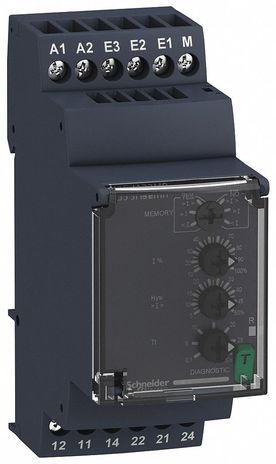

Square D RM35JA32MR
SKU: CS4812686MPN: RM35JA32MR
current control relay, Harmony Control Relays, 5A, 2CO, 0.15…15A, 24…240V AC DC
$166.28
UnitAvailable on backorder
Product Details
Current Control Relay
- Nominal Output Current: 8A* Supply Voltage Limits: 20.4-264V AC/DC* Mounting Position: Any
Attributes
| Ambient Air Temperature For Storage | -40-70 °C |
| Contacts Material | cadmium free |
| Contacts Type And Composition | 2 C/O |
| Control Circuit Voltage Limits | - 15 % + 10 % Un |
| Electrical Durability | 100000 cycles |
| Housing Material | self-extinguishing plastic |
| Immunity To Microbreaks | 50 ms |
| Insulation | between supply and measurement |
| Internal Input Resistance | 0.015 Ohm# #0.005 Ohm# #0.05 Ohm |
| Mechanical Durability | 10000000 cycles |
| Nominal Output Current | 0.333 |
| Output Contacts | 2 C/O |
| Product Certifications | CE# #GL# #CCC# #EAC# #RCM# #UL# #CSA |
| Product Or Component Type | current control relay |
| Range Of Product | Harmony Control Relays |
| Relay Monitored Parameters | overcurrent or undercurrent in window mode# #overcurrent or undercurrent detection |
| Relay Name | RM35JA |
| Relay Type | current control relay |
| Run Up Delay At Power Up | 0.3 s |
| Safety Reliability Data | MTTFd = 296.8 years# #B10d = 270000 |
| Setting Accuracy Of The Switching Threshold | ± 10 % of the full scale |
| Standards | EN/IEC 60255-1 |
| Switching Capacity In Va | 2000 VA |
| Threshold Setting | 10…100 % |
Specifications
| SKU | CS4812686 |
|---|---|
| MPN | RM35JA32MR |
You may also like
Square D RM22JA31MR
$129.07Unit
Square D RM17JC00MW
$162.51Unit
Square D RM35LM33MW
$144.14Unit
Square D RM22UB34
$158.27Unit
Square D RM22TR31
$178.53Unit
Square D RM35TF30
$341.51Unit
Square D RM17UAS15
$172.88Unit

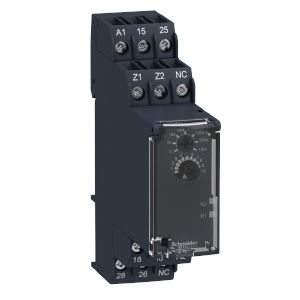

Square D RE22R2KMR
