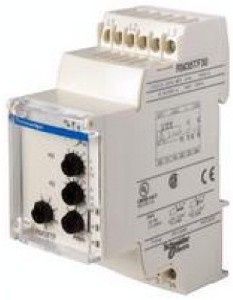

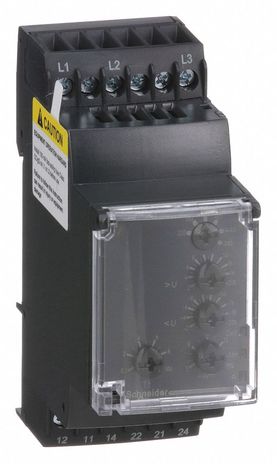

Square D RM35TF30

3-phase control relay, Harmony Control Relays, 5A, 2CO, screw connectors, 220...480V AC

3 Phase Relay:

• Vibration Resistance: Operational 0.035 mm from 10 to 150 Hz* Shock Resistance 5* Degree of Protection IP30 (Casing) - IP20 (Terminal Block)* Wiring range: Solid Cable without Cable End Two: 16 to 20 AWG (1.5 to 0.5 mm2) - One: 14 to 20 AWG (2.5 to 0.5 mm2)* Application Control of 3-phase supplies* Function Phase failure - Asymmetry - Overvoltage or undervoltage - Phase sequence* Supply Voltage 220 to 480 VAC* Voltage Limits -15% to +10%* Adjustment of Voltage Threshold 2 to 20 % of Un selected* Frequency of Measured Signal 50 to 60 Hz ± 10%* Current Rating 5 A (1 A at 24 VDC, 5 A at 24 VAC, 3 A at 250 VAC)* Contact Type Cadmium-free* * Electrical Life (UL508) Operations at Rated Current(Resistive) 10,000 operations* Contact Configuration DPDT* Frequency 50/60 Hz ±10%* Hysteresis 2% of Un, Fixed* Output Type 904-01-01 05:00:00* Operating Range 194 to 528 VAC* Minimum Breaking Current 10 V at 5 VDC* Insulation Test Voltage: Shock Wave 4 kV* Maximum Measuring Cycle 140 ms per measurement as true rms value* Maximum Response In The Event of A Fault \< 200 ms* Measurement Range 194 to 528 VAC* Phase-Phase Voltage Selection 220V - 380V - 480V - 400V - 415 - 440V* Setting Accuracy ± 10% of the full scale value* Utilization Categories AC-12 - AC-14 - AC-13 - DC-13 - DC-12 - AC-15* Delay on Pick-up 500 ms* Time Delay on Crossing The Threshold Tt 0.1 to 10 sec, 0 + 10%* Ambient Air Temperature around the Device - Operation -20 to 50* Ambient Air Temperature around the Device - Storage -40 to 70* Permissible Relative Humidity 2 x 24 hrs. to +95% RH at +131 8F (55 8C) without condensation* Wiring Range: Flexible Cable with Cable End Two: 16 to 20 AWG (1.5 to 0.5 mm2) - One: 14 to 20 AWG (2.5 to 0.5 mm2)
