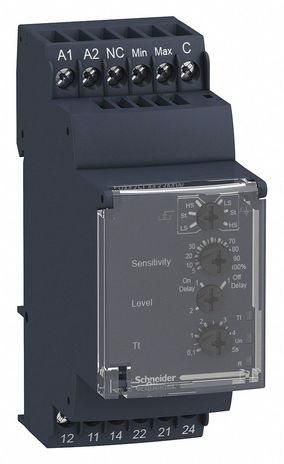

Square D RM35LM33MW
SKU: CS4812687MPN: RM35LM33MW
level control relay, Harmony Control Relays, 5A, 2CO, 24…240V AC DC
$144.14
UnitAvailable on backorder
Product Details
Liquid level control relay RM35-L - 24..240 V AC/DC
Attributes
| Ambient Air Temperature For Storage | -40-70 °C |
| Contacts Type And Composition | 2 C/O |
| Control Circuit Voltage Limits | - 15 % + 10 % Un |
| Electrical Durability | 100000 cycles |
| Housing Material | self-extinguishing plastic |
| Marking | CE : 73/23/EEC# #CE : EMC 89/336/EEC |
| Marking 1 | CE : 73/23/EEC# #CE : EMC 89/336/EEC |
| Maximum Supply Current For Sensors | 1 mA |
| Measurement Accuracy | ± 10 % of the full scale value# #± 20 % for the HS range |
| Measurement Range | 250 Ohm…1 MOhm |
| Mechanical Durability | 30000000 cycles |
| Nominal Output Current | 0.208 |
| Output Contacts | 2 C/O |
| Product Certifications | CSA# #GL# #UL# #C-Tick# #GOST |
| Product Or Component Type | level control relay |
| Range Of Product | Harmony Control Relays |
| Relay Monitored Parameters | detection by resistive probes |
| Relay Name | RM35L |
| Relay Type | level control relay |
| Reset Time | 1750 ms |
| Run Up Delay At Power Up | 0.6 s |
| Safety Reliability Data | B10d = 170000# #MTTFd = 182.6 years |
| Sensitivity Adjustment | 5-100 % |
| Standards | EN/IEC 60255-6 |
| Switching Capacity In Va | 1250 VA |
Specifications
| SKU | CS4812687 |
|---|---|
| MPN | RM35LM33MW |
You may also like

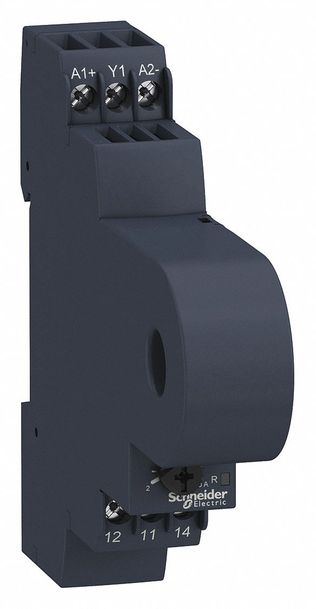

Square D RM17JC00MW
$162.51Unit
Square D RM17UAS15
$172.88Unit

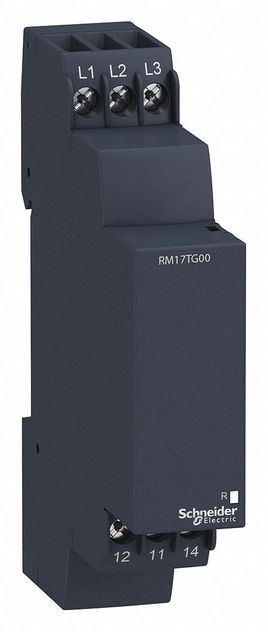

Square D RM17TG00
$142.73Unit
Square D RM35JA32MR
$166.28Unit
Square D RM22LA32MR
$88.56Unit

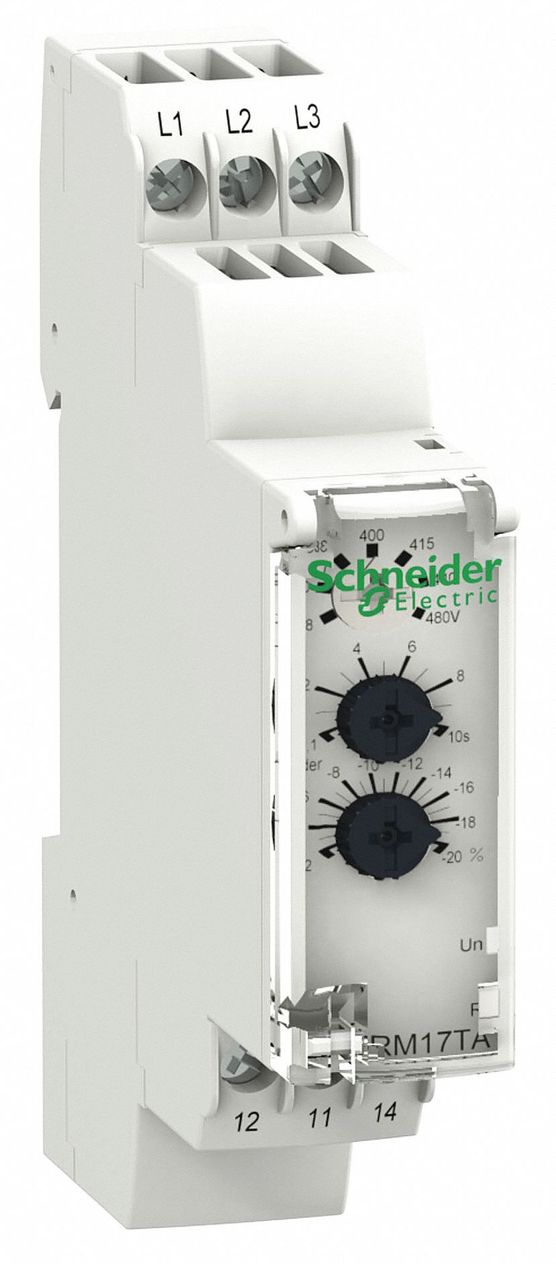

Square D RM17TA00
$221.40Unit

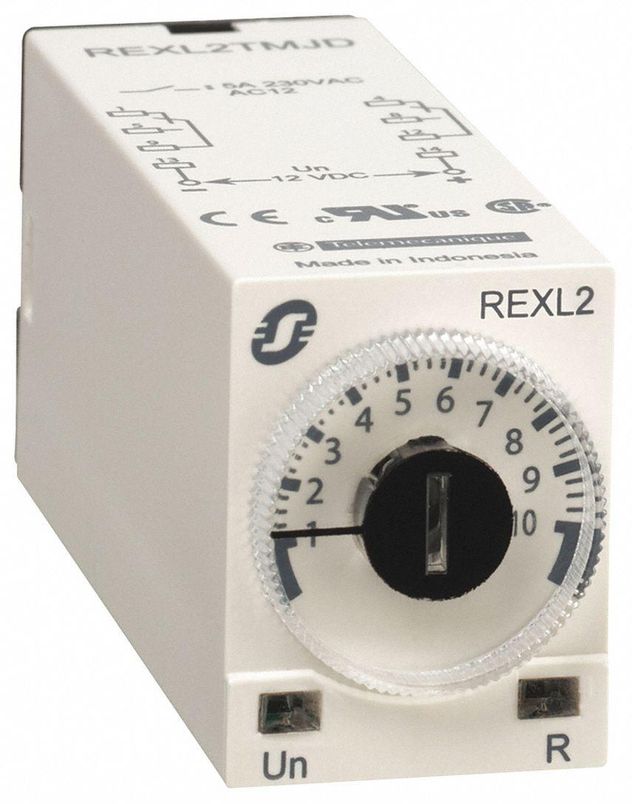

Square D REXL2TMP7
Contact us for pricing and availability

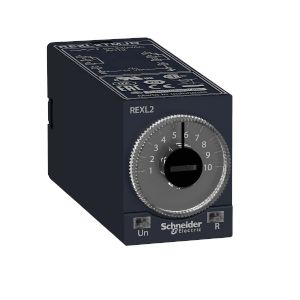

Square D REXL2TMF7
$66.42UnitSquare D RE48AML12MW
$107.87Unit

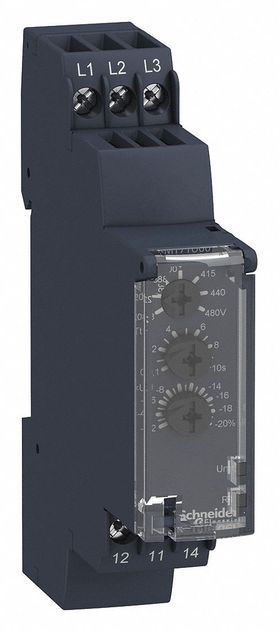

Square D RM17TU00
$163.92Unit

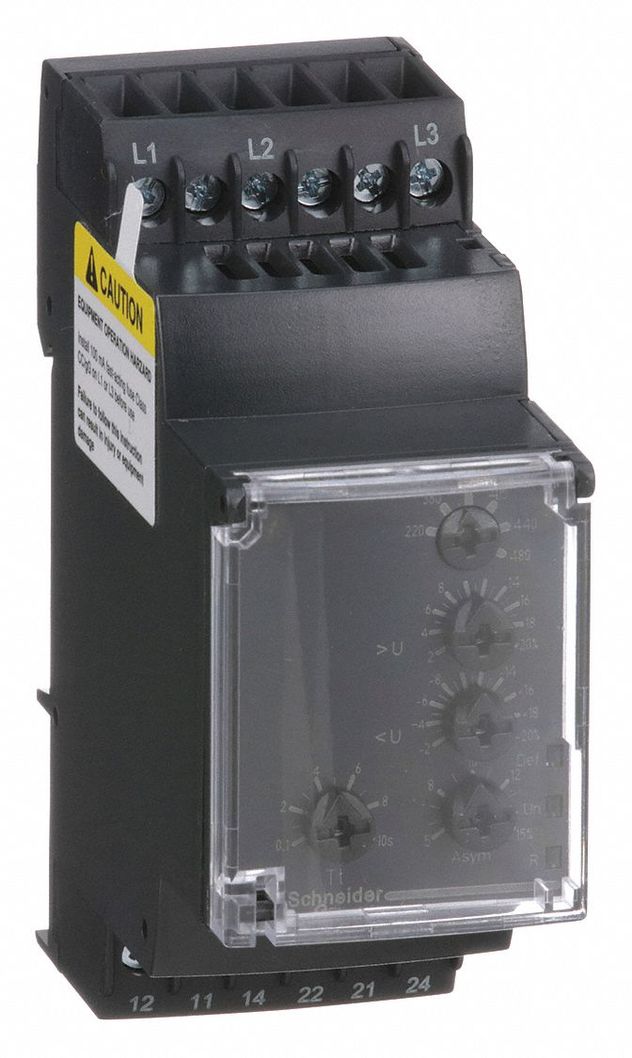

Square D RM35TF30
$341.51Unit

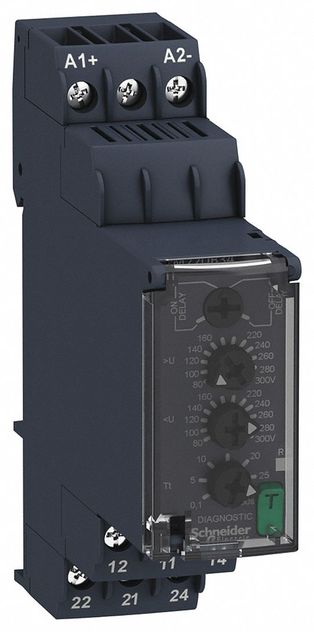

Square D RM22UB34
