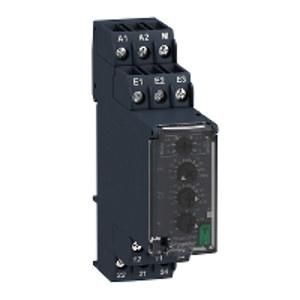

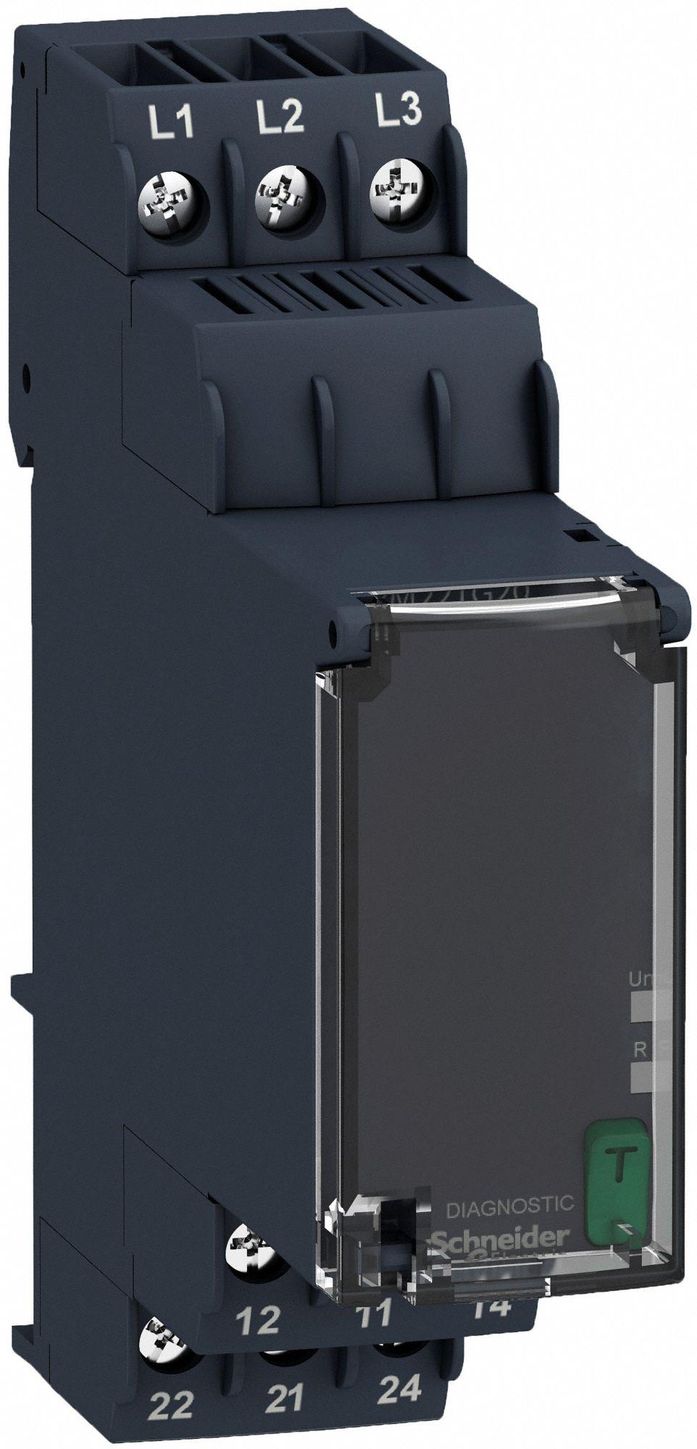

Square D RM22TG20

Name: Square D RM22TG20
Brand: Square D
SKU: CS3162393
Price: 89.97 USD
Availability: OutOfStock

SKU: CS3162393MPN: RM22TG20

3-phase control relay, Harmony Control Relays, 8A, 2CO, 183…528V AC

$89.97

Unit

Available on backorder

Quantity

remove

add

Product Details

Zelio Control Relay

Network Number of Phases: 3 Phases* Relay Monitored Parameters: Phase sequence, Phase failure detection* Measurement Range:183-528V AC* Maximum Switching Voltage: 250V AC* Maximum Switching Current: 8A AC* Rated Supply Voltage: 208-480V AC* Output Contacts: 2 C/O* Mounting Position: Any* Connections - Terminals: Screw terminals* Status LED: LED yellow for relay ON, LED green for power ON* Degree of Protection: IP20 on terminals, IP40 on housing, IP50 on front panel, conforming to IEC 60529

Ambient Air Temperature For Storage	-40-70 °C
Contacts Material	cadmium free
Contacts Type And Composition	2 C/O
Electrical Durability	100000 cycles
Housing Material	self-extinguishing plastic
Mechanical Durability	10000000 cycles
Mounting Position	any position
Network Number Of Phases	3 phases
Network Number Of Phases 1	3 phases
Output Contacts	2 C/O
Product Certifications	CE# #EAC# #RCM# #GL# #CSA# #UL# #CCC
Product Or Component Type	3-phase control relay
Range Of Product	Harmony Control Relays
Relay Monitored Parameters	phase sequence# #phase failure detection (2 or more phase cut)
Relay Name	RM22TG
Relay Type	control relay
Run Up Delay At Power Up	650 ms
Safety Reliability Data	MTTFd = 924.6 years# #B10d = 850000
Standards	EN/IEC 60255-1
Switching Capacity In Va	2000 VA
