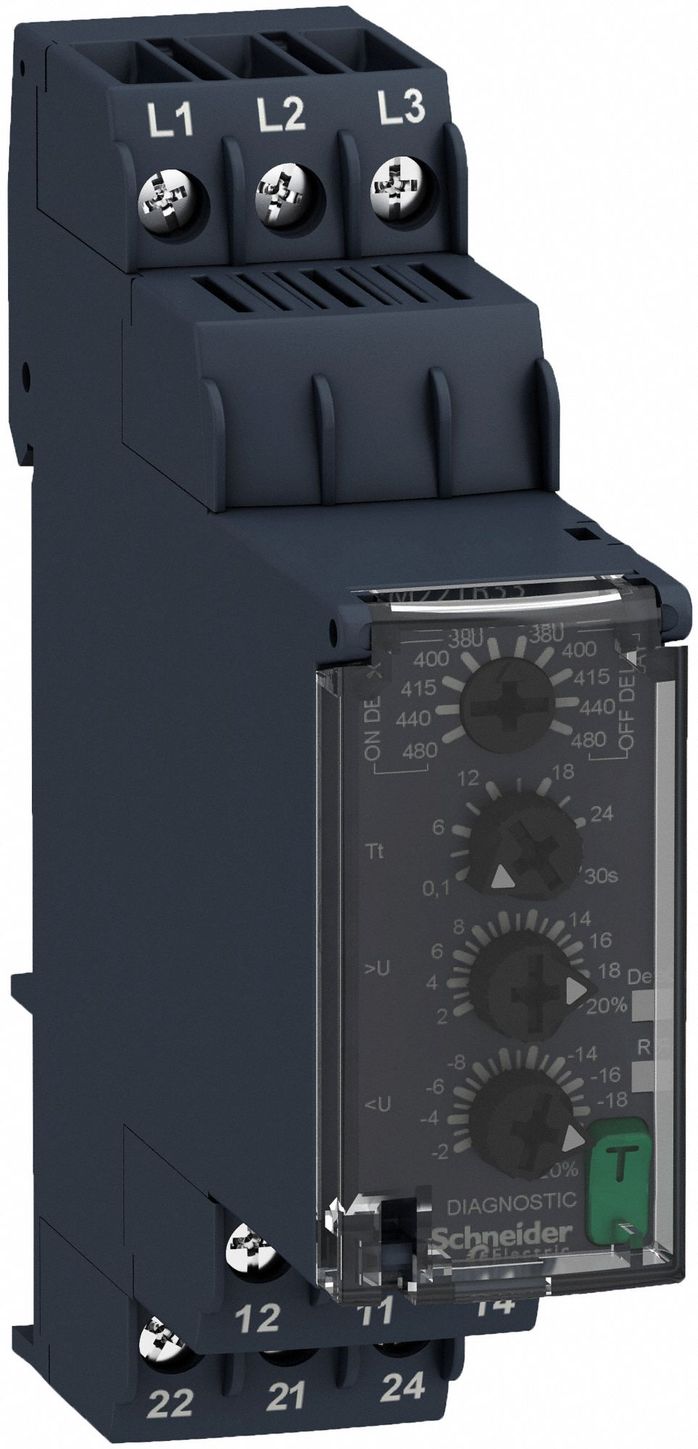

Schneider Electric RM22TR33

Name: Schneider Electric RM22TR33
Brand: Schneider Electric
SKU: CS3175421
Price: 155.45 USD
Availability: OutOfStock

SKU: CS3175421MPN: RM22TR33

3-phase control relay, Harmony Control Relays, 8A, 2CO, 380...480V AC

$155.45

Unit

Available on backorder

Quantity

remove

add

Product Details

Zelio Control Relay

Network Number of Phases: 3 Phases* Relay Monitored Parameters: Phase sequence, Overvoltage and undervoltage detection, Phase failure detection* Measurement Range: 380-480V AC* Maximum Switching Voltage: 250V AC* Maximum Switching Current: 8A AC* Rated Supply Voltage: 380-480V AC* Output Contacts: 2 C/O* Mounting Position: Any* Connections - Terminals: Screw terminals* Status LED: LED yellow for relay ON, LED green for power ON* Degree of Protection: IP20 on terminals, IP40 on housing, IP50 on front panel, conforming to IEC 60529

Ambient Air Temperature For Storage	-40-70 °C
Contacts Material	cadmium free
Contacts Type And Composition	2 C/O
Electrical Durability	100000 cycles
Housing Material	self-extinguishing plastic
Mechanical Durability	10000000 cycles
Mounting Position	any position
Network Number Of Phases	3 phases
Network Number Of Phases 1	3 phases
Nominal Output Current	0.333
Output Contacts	2 C/O
Product Certifications	GL# #CSA# #RCM# #CE# #EAC# #CCC# #UL
Product Or Component Type	3-phase control relay
Range Of Product	Harmony Control Relays
Relay Monitored Parameters	overvoltage and undervoltage detection# #phase sequence# #phase failure detection
Relay Name	RM22TR
Relay Type	control relay
Run Up Delay At Power Up	650 ms
Safety Reliability Data	MTTFd = 388.1 years# #B10d = 350000
Standards	EN/IEC 60255-1
Switching Capacity In Va	2000 VA
Threshold Adjustment Voltage	2…20 % of Un selected
