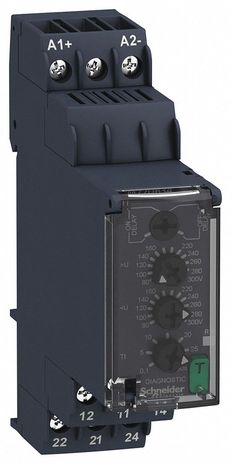

Square D RM22UB34

Name: Square D RM22UB34
Brand: Square D
SKU: CS4812685
Price: 158.27 USD
Availability: OutOfStock

SKU: CS4812685MPN: RM22UB34

voltage control relay, Harmony Control Relays, 8A, 2CO, 80…300V AC DC, 110…240V AC DC

$158.27

Unit

Available on backorder

Quantity

remove

add

Product Details

Zelio Voltage Control Relay

Network Number of Phases: 1 Phase* Relay Monitored Parameters: Overvoltage and undervoltage detection* Measurement Range: 80-300V AC 50/60 Hz* Maximum Switching Voltage: 250V AC* Maximum Switching Current: 8A AC* Rated Supply Voltage: 110-240V AC 50/60 Hz* Output Contacts: 2 C/O* Mounting Position: Any* Connections - Terminals: Screw terminals* Status LED: LED yellow for relay ON, LED green for power ON* Degree of Protection: IP20 on terminals, IP40 on housing, IP50 on front panel, conforming to IEC 60529

Ambient Air Temperature For Storage	-40-70 °C
Compatibility Code	RM22
Contacts Material	cadmium free
Contacts Type And Composition	2 C/O
Electrical Durability	100000 cycles
Functionality	overvoltage and undervoltage detection
Housing Material	self-extinguishing plastic
Mechanical Durability	10000000 cycles
Network Number Of Phases 1	1 phase
Nominal Output Current	0.333
Output Contacts	2 C/O
Product Certifications	CCC# #CE# #CSA# #EAC# #UL# #GL# #RCM
Product Or Component Type	voltage control relay
Range Of Product	Harmony Control Relays
Relay Monitored Parameters	overvoltage and undervoltage detection
Relay Name	RM22UA
Relay Type	voltage control relay
Safety Reliability Data	MTTFd = 433.7 years# #B10d = 400000
Standards	EN/IEC 60255-1
Supply Circuit Type	AC/DC
Switching Capacity In Va	2000 VA
