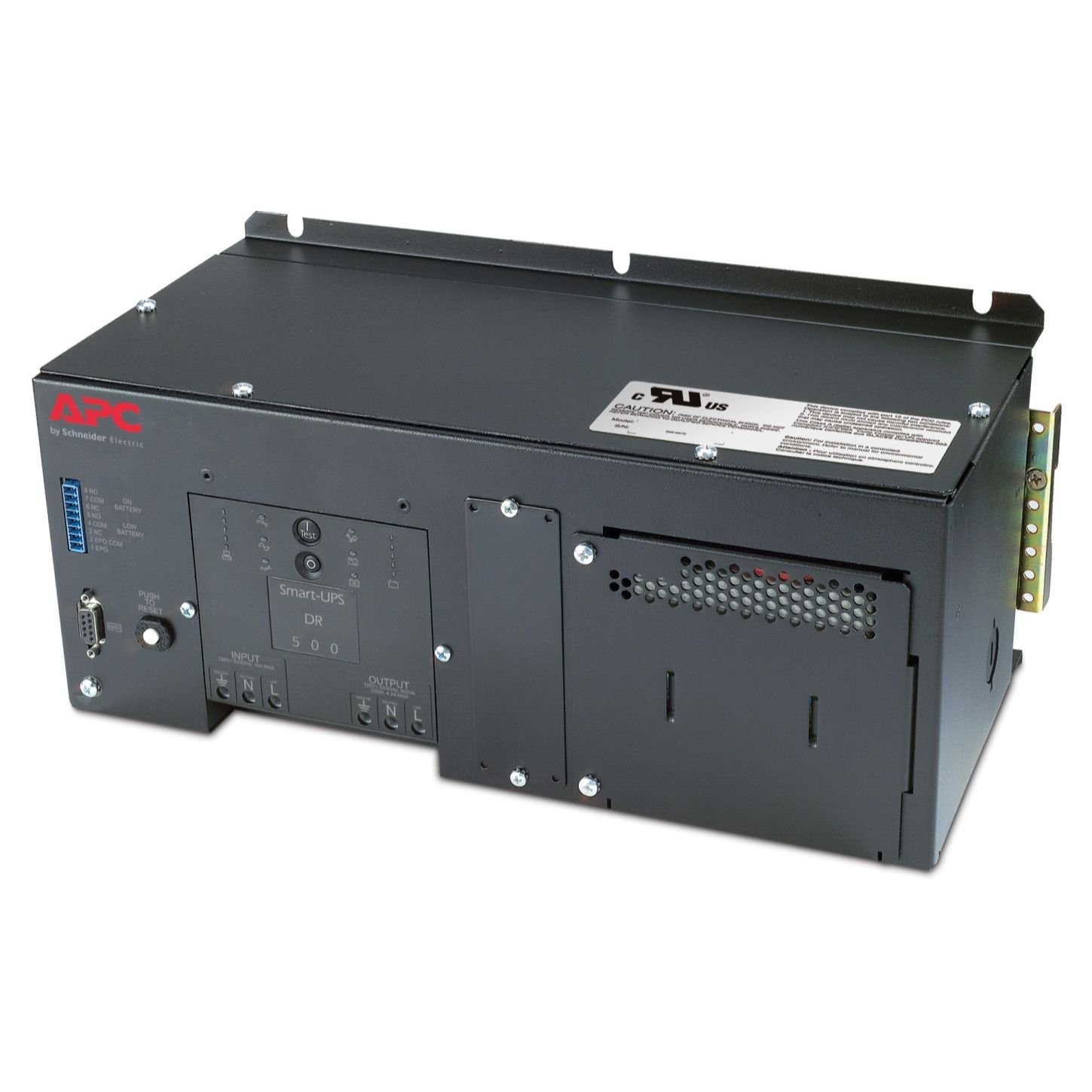

APC SUA500PDR

Name: APC SUA500PDR
Brand: APC
SKU: CS4805414
Availability: OutOfStock

SKU: CS4805414MPN: SUA500PDRUPC/EAN: 731304289982

APC DIN Rail - Panel Mount UPS-without battery-500VA 120V

Product Details

APC DIN Rail - Panel Mount UPS-without battery 500VA 120V

Attributes

Sena Acoustic Level	55 dBA
Sena Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Sena Ambient Air Temperature For Operation	0-40 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Charger Power	48 W rated
Sena Battery Curve	B
Sena Battery Life	3-5 year(s)
Sena Battery Recharge Time	2.5 h
Sena Battery Type	lead-acid battery
Sena Control Panel	LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
Sena Curve Equation	efficiency
Sena Curve Load Maximum	1.0000
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Emergency Power Off	yes
Sena Free Slots	1.0000
Sena Graph Display	1.0000
Sena Harmonic Distortion	less than 5 %
Sena Heat Dissipation	90 Btu/h
Sena Input Voltage	120 V
Sena Input Voltage 1	120 V
Sena Input Voltage Limits	75…154 V adjustable 82…144 V
Sena Ip Degree Of Protection	IP20
Sena Maximum Configurable Power In Va	500 VA
Sena Maximum Configurable Power In W	325 W
Sena Mounting Location	front
Sena Mounting Mode	not rack-mountable
Sena Mounting Preference	no preference
Sena Network Frequency	50/60 Hz ± 3 Hz auto-sensing
Sena Noise Suppression	full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Sena Number Of Battery Free Slots	1.0000
Sena Number Of Battery Replacement Quantity	1.0000
Sena Number Of Input Connectors	1 hard wire 3-wire (1P + N + E)
Sena Operating Altitude	0…10000 ft
Sena Output Connector Type	hard wire 3-wire (H N + E) 1
Sena Output Frequency	47…53 Hz for 50 Hz nominal sync to mains 57…63 Hz for 60 Hz nominal sync to mains
Sena Output Voltage	120 V
Sena Output Voltage 1	120 V
Sena Performance Multiplier	1.0000
Sena Product Certifications	UL recognized
Sena Provided Equipment	CD with software documentation CD installation guide Smart UPS signalling RS-232 cable
Sena Provided Equipment 1	CD with software documentation CD installation guide Smart UPS signalling RS-232 cable
Sena Provided Equipment 2	CD with software documentation CD installation guide Smart UPS signalling RS-232 cable
Sena Rated Power In Va	500 VA
Sena Rated Power In W	325 W
Sena Redundant	No
Sena Relative Humidity	0-95 %
Sena Show Note Op Temperature	No
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	0-95 %
Sena Surge Energy Rate	540 J
Sena Ups Design Life	6 year(s)
Sena Ups Size	WS
Sena Ups Type	line interactive
Sena Usb Compatible	No
Sena Value Multiplier	1.0000
Sena Wave Type	sine wave
