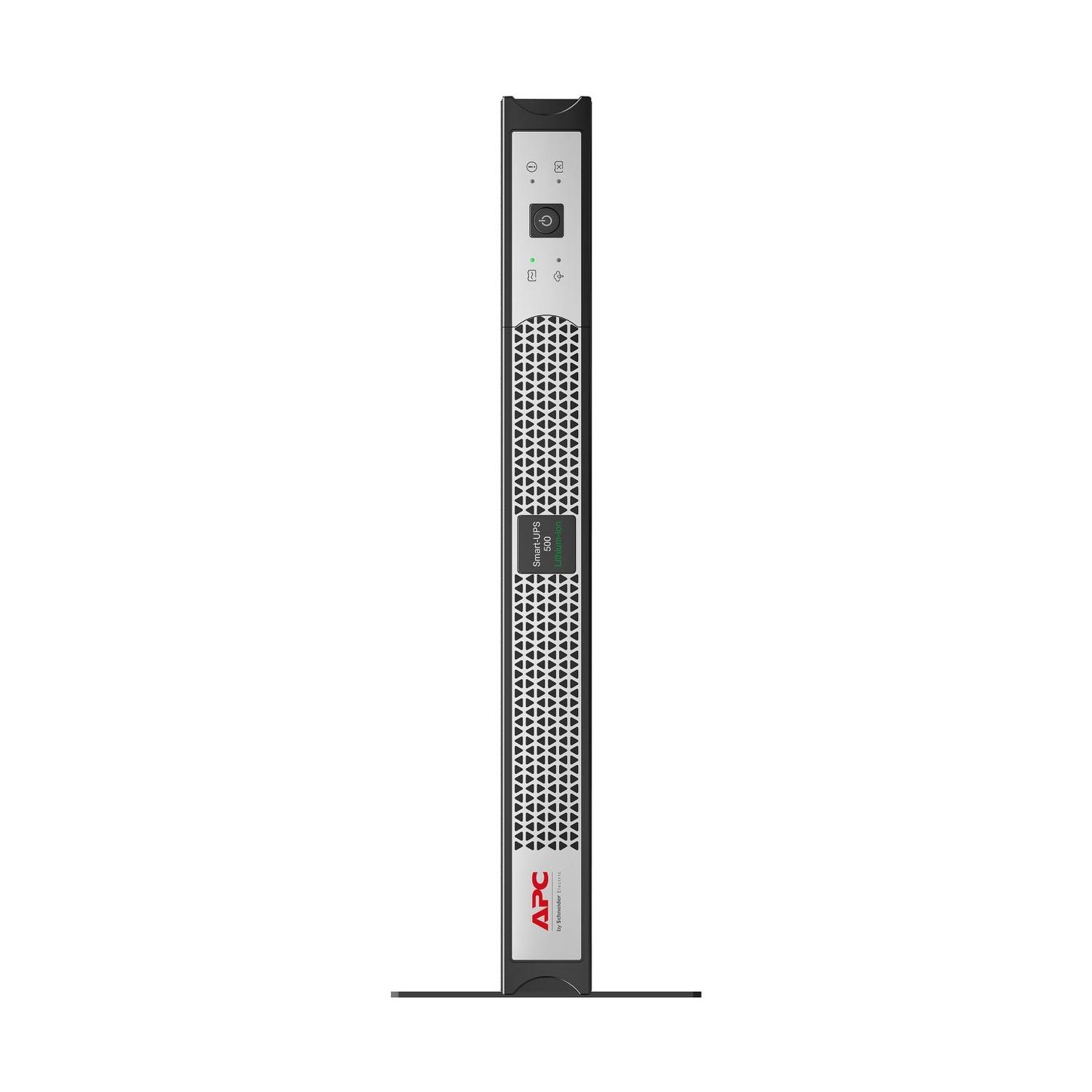

APC SCL500RM1UC

Name: APC SCL500RM1UC
Brand: APC
SKU: CS5033526
Availability: OutOfStock

SKU: CS5033526MPN: SCL500RM1UCUPC/EAN: 731304344551

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth

Product Details

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth

Attributes

Sena Acoustic Level	45 dBA
Sena Additional Specification	Lithium-Ion
Sena Alarm	alarm when on battery : distinctive low battery alarm : configurable delays
Sena Ambient Air Temperature For Operation	0-40 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Charger Power	10 W rated
Sena Battery Curve	L1
Sena Battery Design Life	5-10 year(s)
Sena Battery Design Life 1	5-10 year(s)
Sena Battery Life	8-10 year(s)
Sena Battery Recharge Time	3 h
Sena Battery Type	Li-Ion (Lithium-Ion)
Sena Control Panel	LED status display with on line : on battery : replace battery and building wiring fault
Sena Curve Equation	efficiency
Sena Curve Fixed Loss	0.0093999998643994
Sena Curve Load Maximum	1.0000
Sena Curve Load Minimum	0.0099999997764826
Sena Curve Square Loss	0.0049000000581145
Sena Curve Test Cond Id	Curve fit of data measured in accordance with the US DOE Test Procedure for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF = 1.
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Equipment Protection Policy	lifetime : $150000
Sena Graph Display	1.0000
Sena Input Voltage	120 V
Sena Input Voltage 1	120 V
Sena Input Voltage Limits	92…139 V
Sena Maximum Configurable Power In Va	500 VA
Sena Maximum Configurable Power In W	400 W
Sena Mounting Mode	rack-mounted
Sena Mounting Preference	no preference
Sena Mounting Support	floor# #wall
Sena Nb Of Power Socket Outlets	4 NEMA 5-15R
Sena Network Frequency	47…63 Hz
Sena Noise Suppression	full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Sena Number Of Rack Unit	1U
Sena Number Of Tare Power	8 W
Sena Operating Altitude	0…6561 ft
Sena Output Frequency	50/60 Hz ± 3 Hz sync to mains
Sena Output Voltage	120 V
Sena Output Voltage 1	120 V
Sena Performance Multiplier	1.0000
Sena Plug Standard	NEMA 5-15P
Sena Product Certifications	cULus# #NOM
Sena Provided Equipment	CD with software documentation CD installation guide rack mounting support rails USB cable
Sena Provided Equipment 1	CD with software documentation CD installation guide rack mounting support rails USB cable
Sena Provided Equipment 2	CD with software documentation CD installation guide rack mounting support rails USB cable
Sena Rated Power In Va	500 VA
Sena Rated Power In W	400 W
Sena Redundant	No
Sena Relative Humidity	10-90 % non-condensing
Sena Show Note Op Temperature	No
Sena Standards	CSA C22.2 No 107.3# #FCC part 15 class A# #UL 1778# #UL 1973
Sena Storage Altitude	0-49212 ft
Sena Storage Relative Humidity	10-90 % non-condensing
Sena Surge Energy Rate	680 J
Sena Transfer Time	6 ms typical : 10 ms maximum
Sena Two Post Mountable	1.0000
Sena Ups Design Life	10 year(s)
Sena Ups Size	S
Sena Ups Type	line interactive
Sena Usb Compatible	Yes
Sena Value Multiplier	1.0000
Sena Wave Type	sine wave
