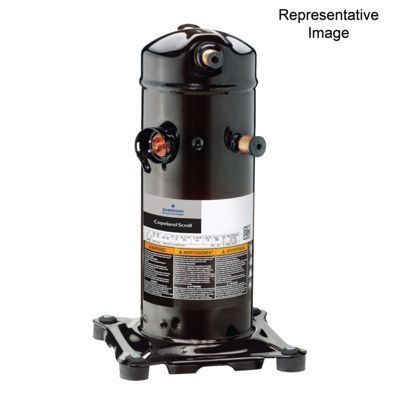

Carrier ZPD182KCE-TED-950

Name: Carrier ZPD182KCE-TED-950
Brand: Carrier
SKU: CS4231090
Price: 8730.13 USD
Availability: OutOfStock

SKU: CS4231090MPN: ZPD182KCE-TED-950Alternate Part #: CAR-ZPD182KCE-TED-950

Factory Authorized Parts™ - ZPD182KCE-TED-950 Copeland Scroll™ Compressor

$8,730.13

Unit

Available on backorder

Quantity

remove

add

Documents

Carrier ZP154KCE TED 950, ZP154KCE-TFD-855, ZP182KCE TED 950, ZP31K6E PFV 830, ZPD182KCE TED 950, ZR108KCE TF5 950, ZR108KCE TFD 950, ZR25K5E PFV 830, ZR57K3E TFD 950 Installation Instructions

Product Details

Factory Authorized Parts™ - ZPD182KCE-TED-950 Copeland Scroll™ Compressor

Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time, up to 4-6 weeks. By purchasing this product, you agree to these terms.

Attributes

Amps	24.7
Phase	Three
Voltage	380-420/460 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	182,000
Protection	External Enhanced
Cycle/Hertz	50/60 Hz
Refrigerant	R-410A; R-410B
Displacement	10.20 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	82
Compressor Housing	Hermetic
Liquid Temperature	105°F to 115°F (40.56°C to 46.11°C)
Mass Flow (lbs/hr)	2270 lbs./hr.; 2690 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 23.02”
Rated Load Amps (RLA)	26.9
Substantial Commodity	Steel
Condensing Temperature	120°F to 130°F (48.89°C to 54.44°C)
Return Gas Temperature	55°F
Suction Line Size (OD)	1 ⅜”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	173
Oil Charge Initial (oz.)	114
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	⅞”
