Carrier ZP154KCE-TED-950

Name: Carrier ZP154KCE-TED-950
Brand: Carrier
SKU: CS4231016
Price: 6339.30 USD
Availability: OutOfStock

SKU: CS4231016MPN: ZP154KCE-TED-950Alternate Part #: CAR-ZP154KCE-TED-950

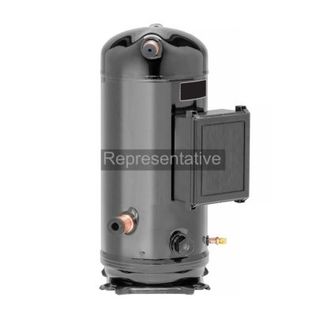

Factory Authorized Parts™ - ZP154KCE-TED-950 Compressor

$6,339.30

Unit

Available on backorder

Quantity

remove

add

Documents

Factory Authorized Parts™ - ZP154KCE-TED-950 Compressor

Amps	19
Phase	Three
Voltage	380-420/460 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	155,000
Protection	External Enhanced
Cycle/Hertz	50/60 Hz
Refrigerant	R-410A; R-410B
Displacement	8.72 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	80
Compressor Housing	Hermetic
Liquid Temperature	105°F to 115°F (40.56°C to 46.11°C)
Mass Flow (lbs/hr)	1930 lbs./hr.; 2290 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 23.02”
Rated Load Amps (RLA)	25.7
Substantial Commodity	Steel
Condensing Temperature	120°F to 130°F (48.89°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	1 ⅜”
Evaporating Temperature	35°F
Locked Rotor Amps (LRA)	150
Oil Charge Initial (oz.)	114
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	⅞”
