Carrier ZR68KCE-TFD-950

Name: Carrier ZR68KCE-TFD-950
Brand: Carrier
SKU: CS4231142
Price: 4035.22 USD
Availability: OutOfStock

SKU: CS4231142MPN: ZR68KCE-TFD-950Alternate Part #: CAR-ZR68KCE-TFD-950

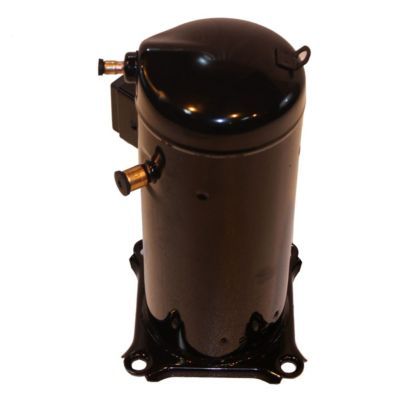

Factory Authorized Parts™ - ZR68KCE-TFD-950 Copeland Scroll™ Compressor 70,000 BTUH

$4,035.22

Unit

Available on backorder

Quantity

remove

add

Product Details

Factory Authorized Parts™ - ZR68KCE-TFD-950 is a Copeland Scroll™ Compressor that is Three phase with a voltage of 460 VAC. The compressor is designed to work in units that are compatible with a BTU Output of 70,000 and use R-22 refrigerant.

Attributes

Amps	10
Phase	Three
Voltage	380-420/460 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	70,000
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	5.68 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	75
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	1030 lbs./hr.; 1060 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 18”
Rated Load Amps (RLA)	9
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	75
Oil Charge Initial (oz.)	60
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
