Carrier ZR57K3E-TF5-950

Name: Carrier ZR57K3E-TF5-950
Brand: Carrier
SKU: CS4231136
Price: 3039.05 USD
Availability: OutOfStock

SKU: CS4231136MPN: ZR57K3E-TF5-950Alternate Part #: CAR-ZR57K3E-TF5-950

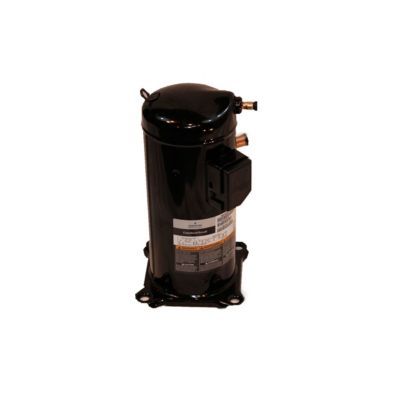

Factory Authorized Parts™ - ZR57K3E-TF5-950 Copeland Scroll™ Compressor 57000 BTUH

Documents

Features:

Amps	19.3
Phase	Three
Voltage	200-220/200-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	58,500
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	4.71 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	74
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	860 lbs./hr.; 880 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.99”
Rated Load Amps (RLA)	19.3
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	123
Oil Charge Initial (oz.)	66
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
