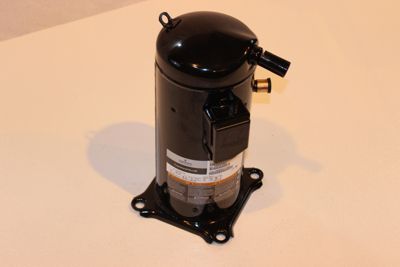

Carrier ZR68KCE-TF5-950

Name: Carrier ZR68KCE-TF5-950
Brand: Carrier
SKU: CS4231141
Price: 3350.68 USD
Availability: OutOfStock

SKU: CS4231141MPN: ZR68KCE-TF5-950Alternate Part #: CAR-ZR68KCE-TF5-950

Factory Authorized Parts™ - ZR68KCE-TF5-950 Copeland Scroll™ Compressor 68000 BTUH

Carrier ZR61K3E TFD 830, ZR68KCE TF5 950

$3,350.68

Unit

Available on backorder

Quantity

remove

add

Documents

Carrier ZR68KCE TF5 950 Data Sheet
Carrier, Copeland ZP16K5E-PFV-830, ZP51K5E-TFD-830, ZR16M3E TWD 961, ZR18K5E PFV 830, ZR32K5E PFV 830, ZR38K5E PFV 830, ZR42K5E TF5 830, ZR57K3E TF5 950, ZR68KCE TF5 950, ZR68KCE TFE 930 Installation Instructions

Product Details

Copeland - ZR68KCE-TF5-950 is a Copeland Scroll™ Compressor that is three phase with a voltage of 208/230 VAC. The compressor is designed to work in units that are compatible with a BTU Output of 68,000 and use R-22 refrigerant.

Attributes

Amps	20.7
Phase	Three
Voltage	200-220/200-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	70,000
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	5.68 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	75
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	1030 lbs./hr.; 1060 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 18”
Rated Load Amps (RLA)	20.7
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	156
Oil Charge Initial (oz.)	60
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
