All ProductsTurck

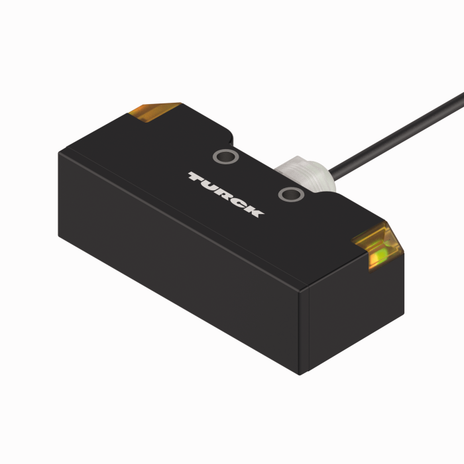

Turck NI30-Q130WD-ADZ30X2

SKU: CS4213012MPN: NI30-Q130WD-ADZ30X2Alternate Part #: 100027541UPC/EAN: 4047101539097

100027541 - NO DESC

Turck NI30-Q130WD-ADZ30X2
Turck NI30-Q130WD-ADZ30X2
Turck NI30-Q130WD-ADZ30X2
Turck NI30-Q130WD-ADZ30X2
$626.18
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

For harsh environments

  • Rectangular, height 40 mm
  • Active surface over the entire front
  • Plastic, PPS-GF30
  • High protection class IP69K for harsh environments
  • Protection against all common acidic and alkaline cleaning agents
  • Laser engraved label, permanently legible
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • NO contact
  • Cable connection

Attributes

Ambient Temperature -30…+85 °C

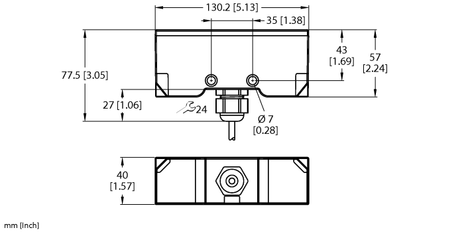

Construction Size 130 x 57 x 40 mm, Q130
Customs Tariff Number 85365080900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable
Housing Material Plastic, PPS-GF30, Black
Mounting Non-flush
Operating Voltage 20…250 VAC / 10…300 VDC
Output Function NO contact, 2-wire
Protection Class IP68/IP69K
Rated Switching Distance 30 mm
Special Feature Wash down
Switching Frequency 0.020 kHz

Specifications

SKUCS4213012
MPNNI30-Q130WD-ADZ30X2
Alternate Part #100027541
UPC/EAN4047101539097
